Compass Zone Adjustment

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Determine which magnetic zone you are in for your geographic location.

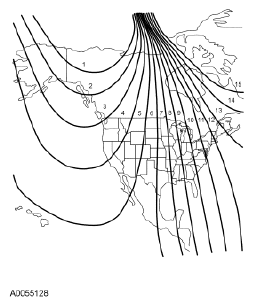

    Fig 1: Compass Calibration Zone Map
    G06076691Courtesy of FORD MOTOR CO.
  2. Start the engine.
  3. NOTE: The XX below represents a numeric display. For example, the display may read ZONE 08 RESET = CHANGE.

    From the SETUP menu, press and release the RESET button until ZONE XX RESET = CHANGE is displayed.

  4. NOTE: The zone selection increases with each subsequent button press with a range of zones from 1 to 15 scrolling back to the beginning.

    Press and release the RESET button until the desired zone appears in the message center display.

  5. To exit the zone setting mode and lock in the changes, press and release either the SETUP or INFO button or simply wait 4 seconds and the message center locks in the zone.
