Instrument Cluster (IC): Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Gasoline vehicles equipped with automatic transmission shown in illustration, other Instrument Cluster (IC) configurations similar.

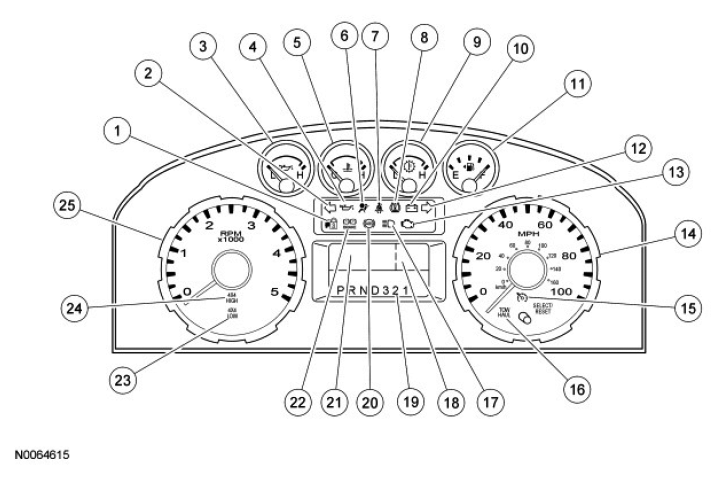

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Anti-theft indicator |
| 2 | - | LH turn indicator |
| 3 | - | Oil pressure gauge (gasoline) or boost gauge (diesel) |
| 4 | - | Low oil pressure warning indicator (gasoline) or wait to start (diesel) |
| 5 | - | Temperature gauge |
| 6 | - | Air bag warning indicator |
| 7 | - | Safety belt warning indicator |
| 8 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 9 | - | Transmission temperature gauge (automatic transmission) or voltage gauge (manual transmission) |
| 10 | - | Charging system warning indicator |
| 11 | - | Fuel gauge |
| 12 | - | RH turn indicator |
| 13 | - | Malfunction Indicator Lamp (MIL) |
| 14 | - | Speedometer |
| 15 | - | Cruise control indicator |
| 16 | - | Tow haul indicator |
| 17 | - | High beam indicator |
| 18 | - | Message center indicator display area |
| 19 | - | PRNDL display |
| 20 | - | ABS warning indicator |
| 21 | - | Message center display area |
| 22 | - | Brake warning indicator |
| 23 | - | Four-Wheel Drive (4WD) low indicator |
| 24 | - | 4WD high indicator |
| 25 | - | Tachometer |
