Removal and Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Set the parking brake.
Remove the 8 axle shaft bolts.
- To install, tighten to 133 Nm (98 lb-ft).

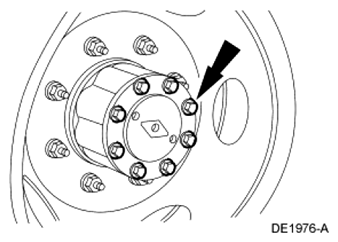

  Fig 1: Locating Axle Shaft Bolts
  Courtesy of FORD MOTOR CO.
Remove the axle shaft.

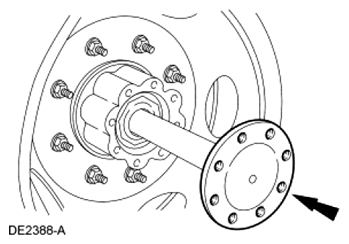

Fig 2: Locating Axle Shaft
Courtesy of FORD MOTOR CO.
Inspect the following components:
- The O-ring for damage. Install a new O-ring as necessary.
- The axle shaft for cracked material around the holes or oversized holes. Install new components as necessary.

  Fig 3: Locating O-Ring
  Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring with premium long-life grease.

To install, reverse the removal procedure.
