Axle - F-450, F-550: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

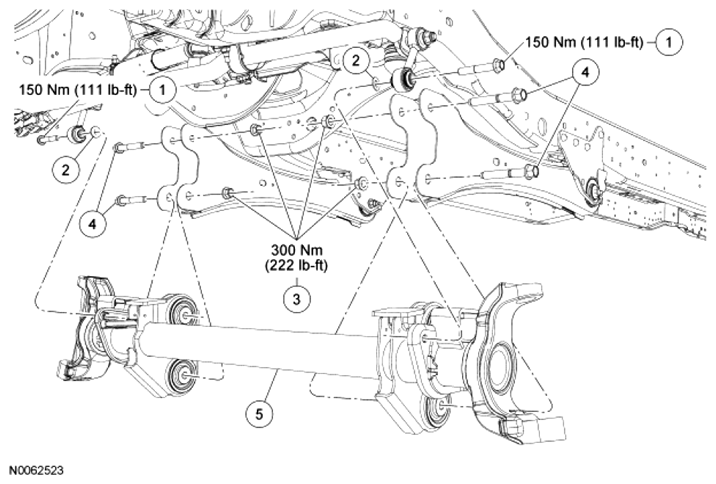

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W707243 |
Stabilizer bar link lower bolts (2 required) |
| 2 |
W709373 |
Washers |
| 3 |
W709860-S |
Radius arm front nuts (4 required) |
| 4 |
N807659 |
Radius arm front bolts (4 required) |
| 5 |
3001 |
Axle assembly |
