Special Tool(s)

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART

G06064974Courtesy of FORD MOTOR CO.
 Dial Indicator Gauge with Holding Fixture
100-002 (TOOL-4201-C) or equivalent
  1. Using a suitable slide caliper, measure the depth to the rivet heads.
    • Install a new clutch disc if the measurement is less than the specification.

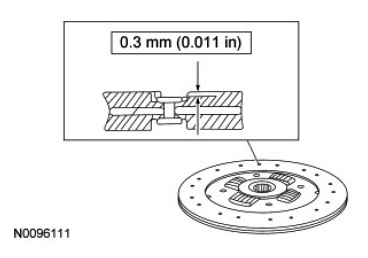

    Fig 1: Measuring Depth To Rivet Heads Using Suitable Slide Caliper
    G06762952Courtesy of FORD MOTOR CO.
  2. Using a Dial Indicator Gauge with Holding Fixture, measure the clutch disc runout.
    • Install a new clutch disc if the measurement is greater than the specification.

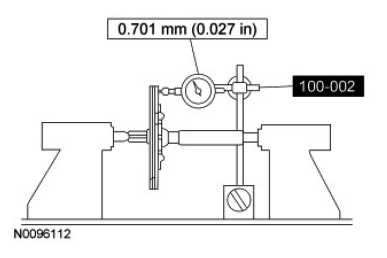

    Fig 2: Measuring Clutch Disc Runout Using Dial Indicator Gauge With Holding Fixture
    G06762953Courtesy of FORD MOTOR CO.
