Transmission - Diesel Engines: Material

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Gasket Maker TA-16	WSK-M2G348-A5
Motorcraft® Full Synthetic Manual Transmission Fluid XT-M5-QS	WSD-M2C200-C
Threadlock and Sealer TA-25	WSK-M2G351-A5

All vehicles

Using the Transmission Jack, raise and position the transmission to the engine and clutch.
Install the 7 transmission-to-engine bolts.
- Tighten to 63 Nm (46 lb-ft).
Position the crossmember in the vehicle. Install the 3 LH transmission support crossmember bolts.
- Tighten to 70 Nm (52 lb-ft).

  Fig 1: Removing LH Crossmember Nuts
  Courtesy of FORD MOTOR CO.
Install the 4 RH crossmember nuts.
- Tighten to 70 Nm (52 lb-ft).

  Fig 2: Removing RH Crossmember Nuts
  Courtesy of FORD MOTOR CO.

NOTE: The transmission mount studs may have come out of the insulator when the nuts were removed. Install new insulator studs if they came out during removal.

Install the 2 transmission mount nuts.
- Tighten the studs to 75 Nm (55 lb-ft).
- Tighten the nuts to 81 Nm (60 lb-ft).

  Fig 3: Locating Transmission Mount Nuts
  Courtesy of FORD MOTOR CO.
Attach the wire harness to the crossmember.
Remove the Transmission Jack.
Connect the transmission fluid cooler tubes.
- Tighten to 27 Nm (20 lb-ft).

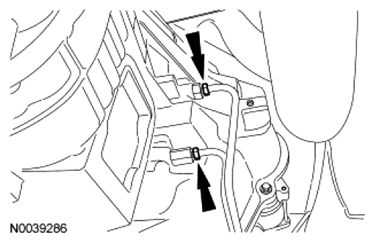

  Fig 4: Locating Transmission Cooling Tubes
  Courtesy of FORD MOTOR CO.
Install the clutch slave cylinder.
- Rotate the clutch slave cylinder clockwise 45 degrees to lock in position.

  Fig 5: Rotating Clutch Slave Cylinder
  Courtesy of FORD MOTOR CO.
Install the transfer case, if equipped. For additional information, refer to TRANSFER CASE .
- If the transfer case control lever assembly was removed from the transmission, it must be correctly aligned.
Install the skid plate, if equipped.

NOTE: Make sure the index marks made during removal are aligned.

Connect the driveshaft.
- Tighten the new driveshaft bolts to 111 Nm (82 lb-ft).
Install any Power Take-Off (PTO) equipment, if equipped.

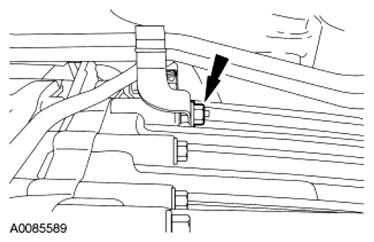

Fig 6: Locating Fuel Lines
Courtesy of FORD MOTOR CO.
Connect the reverse lamp switch electrical connector.

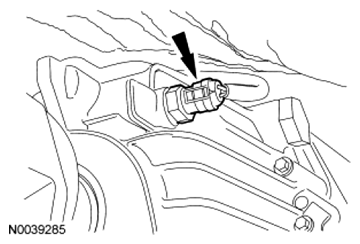

Fig 7: Locating Reverse Lamp Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the wiring harness to the transmission.
Refill the transmission to specification. For additional information, refer to TRANSMISSION DRAINING AND FILLING .
- Refill the transmission with clean transmission fluid.
Install the 2 bolts that attach the shift lever to the transfer case control lever assembly.
- Tighten to 35 Nm (26 lb-ft).

NOTE: Do not use a silicone sealing compound or damage to the components can occur.

NOTE: Do not wait longer than 10 minutes to tighten the 4 bolts due to the rapid cure time of the sealant.

Install the gearshift lever and shift housing assembly.
- Tighten the shift housing-to-case bolts to 23 Nm (17 lb-ft).
- Apply gasket maker to the shift housing and the main case.

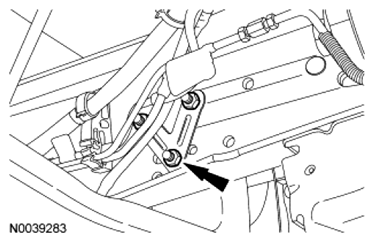

  Fig 8: Locating Lower Gearshift Lever Bolts
  Courtesy of FORD MOTOR CO.
Install the lower shift lever boot and the 2 screws.

Fig 9: Locating Lower Shift Lever Boot And Screws
Courtesy of FORD MOTOR CO.
Install the upper gearshift lever and bolt.
- Tighten to 35 Nm (26 lb-ft).

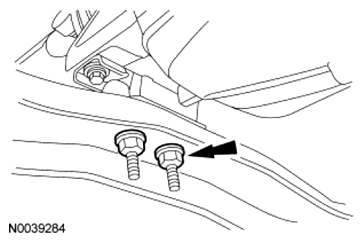

  Fig 10: Locating Upper Gearshift Lever And Bolt
  Courtesy of FORD MOTOR CO.
Install the 4 shift lever boot screws.

Fig 11: Locating Shift Lever Boot Screws
Courtesy of FORD MOTOR CO.

Vehicles with a manual shift transfer case
Verify the shift sequence from 2H to 4L to 2H.
