Gearshift Lever and Boot: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower gearshift lever and gearshift lever blocks into the shift housing.
    • Install the gearshift lever blocks with the notches facing downward.
    2. NOTE: Do not use a silicone sealing compound or damage to the components can occur.
    NOTE: Do not wait longer than 10 minutes to tighten the bolts due to the rapid cure time of the sealant.
  2. Install the shift housing and shift housing-to-case bolts.
    • Apply gasket maker to the sealing surfaces.
    • Tighten to 23 Nm (17 lb-ft).
      Fig 1: Locating Lower Gearshift Lever Bolts
      G06778754Courtesy of FORD MOTOR CO.
  3. Install the lower shift lever boot and the 2 screws.

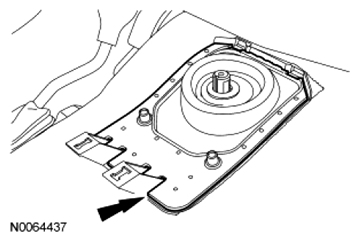

    Fig 2: Locating Lower Shift Lever Boot And Screws
    G06778753Courtesy of FORD MOTOR CO.
  4. Apply threadlock and sealer to the gearshift lever bolt, and install the upper gearshift lever.
    • Tighten to 35 Nm (26 lb-ft).

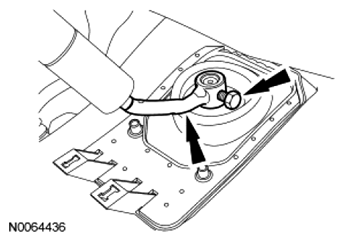

      Fig 3: Locating Gearshift Lever Bolt
      G06778752Courtesy of FORD MOTOR CO.
  5. Install the shift lever boot.

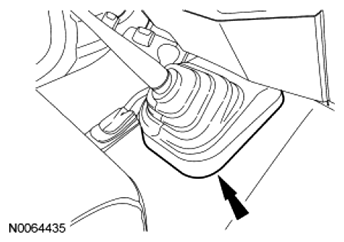

    Fig 4: Locating Shift Lever Boot
    G06778751Courtesy of FORD MOTOR CO.
