Transmission Case: Assembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

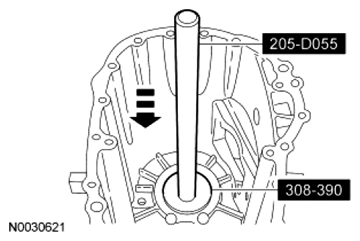

Using the Shift Rail Needle Bearing Installer with the Handle, install a new shift rail bearing.

Fig 1: Installing Shift Rail Bearing
Courtesy of FORD MOTOR CO.

NOTE: Fill the oil pump housing with a suitable engine assembly white grease.

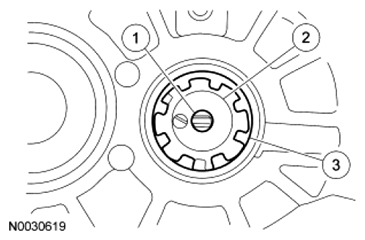

Install the oil pump assembly.
1. Install the rotor into the pump housing.
2. Install the oil pump body.
3. Install a new oil pump snap ring.

  Fig 2: Identifying Rotor Into Pump Housing And Oil Pump Body
  Courtesy of FORD MOTOR CO.

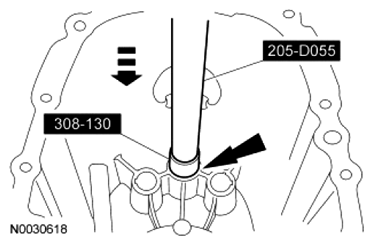

Using the Input Shaft Bearing Cup Installer with the Handle, install the input shaft bearing cup.
- Do not install the oil trough, input shaft shim or the input shaft oil dam bearing ring at this time. The bearing preload adjustment procedure will determine the thickness of the shim to be installed.

  Fig 3: Installing Input Shaft Bearing Cup
  Courtesy of FORD MOTOR CO.
Using the Handle and the Centerplate Front Bearing Cup Installer, install the countershaft bearing cup.
- Do not install the shim at this time. The bearing preload adjustment procedure will determine the thickness of the shim to be installed.

  Fig 4: Installing Countershaft Bearing Cup
  Courtesy of FORD MOTOR CO.
The case assembly will be completed during the assembly procedure. For additional information, refer to TRANSMISSION .
