Intermediate Housing: Disassembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Using a brass drift, remove the intermediate housing countershaft bearing race.

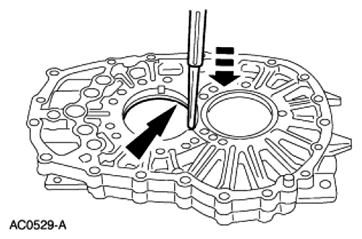

Fig 1: Removing Intermediate Housing Countershaft Bearing Race
Courtesy of FORD MOTOR CO.
Using a brass drift, remove the intermediate housing mainshaft bearing race.

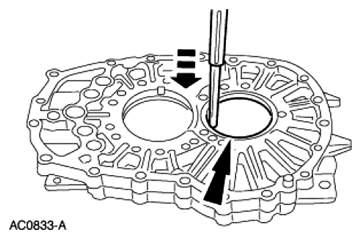

Fig 2: Removing Intermediate Housing Mainshaft Bearing Race
Courtesy of FORD MOTOR CO.
Using the Slide Hammer with the Actuator Pin and a 3/4 to 7/8 inch Collet, remove and discard the center shift rail bearing.

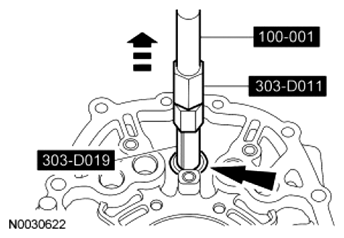

Fig 3: Removing Center Shift Rail Bearing
Courtesy of FORD MOTOR CO.
