Intermediate Housing: Assembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Using the Countershaft Bearing Cup Installer and the Handle, install the intermediate housing countershaft bearing race.
- Using the Heat Gun, heat the bearing area of the housing.

  Fig 1: Installing Intermediate Housing Countershaft Bearing Race
  Courtesy of FORD MOTOR CO.
Using the Centerplate Mainshaft Bearing Cup Installer and the Handle, install the intermediate housing mainshaft bearing race.
- Using the Heat Gun, heat the bearing area of the housing.

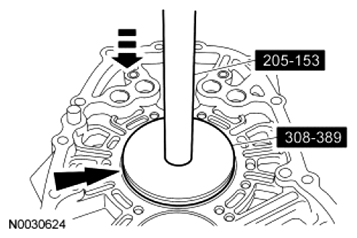

  Fig 2: Installing Intermediate Housing Mainshaft Bearing Race
  Courtesy of FORD MOTOR CO.
Using the Shift Rail Needle Bearing Installer and the Handle, install the center rail shift bearing.
- Using the Heat Gun, heat the bearing area of the housing.

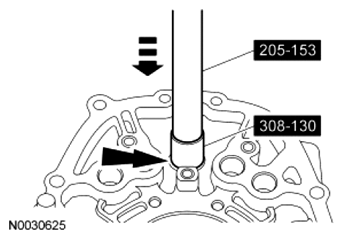

  Fig 3: Installing Center Rail Shift Bearing
  Courtesy of FORD MOTOR CO.
