Extension Housing: Disassembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: To aid installation, index-mark the bolt hole position on the reverse idler shaft.

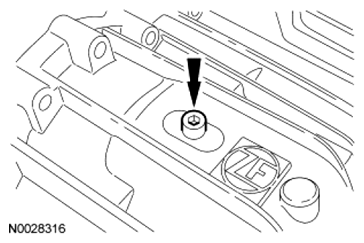

    Fig 1: Locating Reverse Idler Shaft Bolt And Seal
    G06778955Courtesy of FORD MOTOR CO.
  1. Remove the reverse idler shaft bolt and seal. Discard the seal.
  2. Remove the reverse idler shaft support.

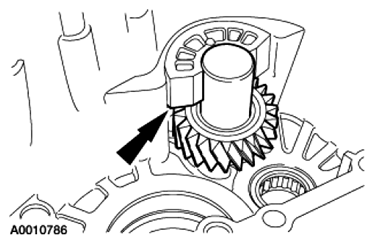

    Fig 2: Identifying Reverse Idler Shaft Support
    G06778956Courtesy of FORD MOTOR CO.
  3. Remove the reverse idler gear.
    • Inspect the gear for wear or damage.
    • Check the teeth for chips or burrs.
    • Install a new gear as necessary.

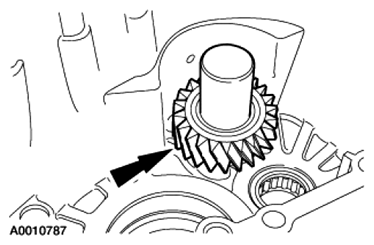

      Fig 3: Removing Reverse Idler Gear
      G06778957Courtesy of FORD MOTOR CO.
  4. Remove the reverse idler gear bearing.
    • Inspect the bearing for wear or damage.
    • Install a new bearing as necessary.

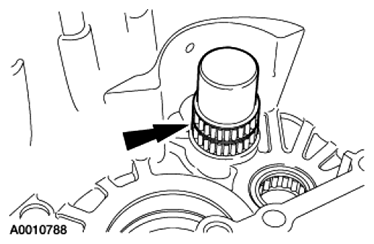

      Fig 4: Removing Reverse Idler Gear Bearing
      G06778958Courtesy of FORD MOTOR CO.
  5. Remove the reverse idler shaft.

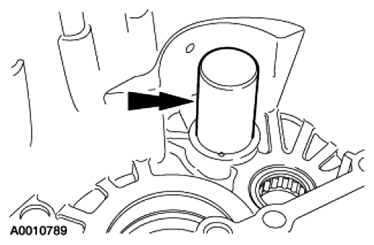

    Fig 5: Removing Reverse Idler Shaft
    G06778959Courtesy of FORD MOTOR CO.
  6. NOTE: Inspect the countershaft front bearing for wear or damage before removing.

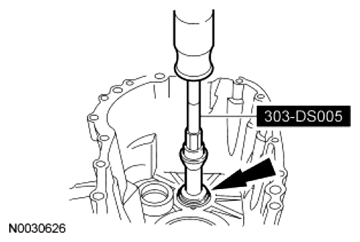

    Fig 6: Removing Countershaft Front Bearing
    G06778960Courtesy of FORD MOTOR CO.
  7. Using the Universal Puller Set, remove and discard the countershaft front bearing.
  8. NOTE: Inspect the bearing for wear or damage before removing.

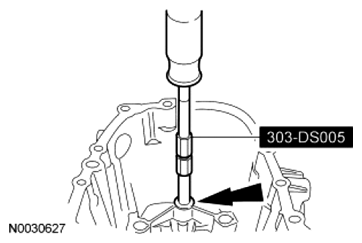

    Fig 7: Removing Shift Rail Bearing
    G06778961Courtesy of FORD MOTOR CO.
  9. Using the Universal Puller Set, remove and discard the shift rail bearing.
  10. Remove the reverse lamp switch and seal. Discard the seal.

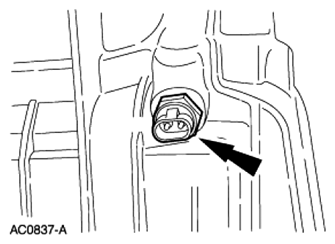

    Fig 8: Locating Reverse Lamp Switch And Seal
    G06778962Courtesy of FORD MOTOR CO.
  11. Remove and discard the output oil seal.

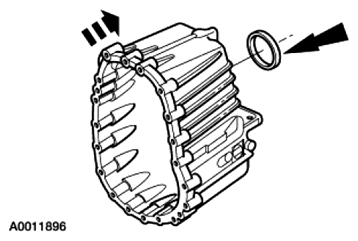

    Fig 9: Removing Output Oil Seal
    G06778963Courtesy of FORD MOTOR CO.
  12. Inspect the magnet. Make sure it is securely attached in the extension housing.

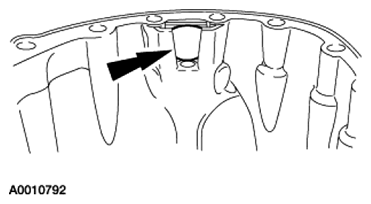

    Fig 10: Inspecting Magnet
    G06778964Courtesy of FORD MOTOR CO.
