Countershaft Bearing: Disassembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Using the Shaft Protector Set, 2 or 3 Jaw Puller and the Drive Pinion Bearing Cone Remover, remove the front countershaft bearing.

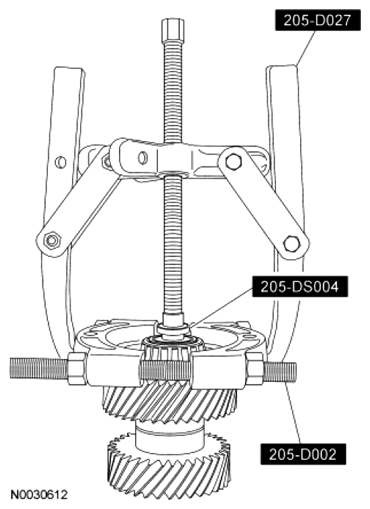

Fig 1: Removing Front Countershaft Bearing
Courtesy of FORD MOTOR CO.
Using the Bearing Puller, remove the rear countershaft bearing.

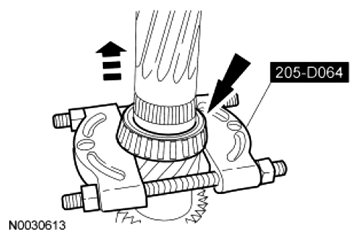

Fig 2: Removing Rear Countershaft Bearing
Courtesy of FORD MOTOR CO.
Inspect the countershaft and bearings for wear or damage. Install new components as necessary. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
- Always install new bearings and cups as a set.

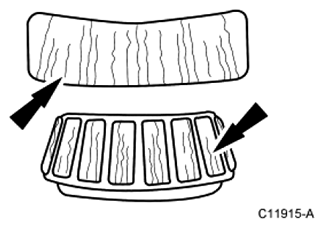

  Fig 3: Locating Bearings And Cups
  Courtesy of FORD MOTOR CO.
Inspect and install a new countershaft if the teeth are chipped or excessively worn.

NOTE: To prevent damage, do not heat the countershaft middle bearing or the countershaft front bearing higher than 150°C (302°F) maximum.

New or original components should be heated in advance of the assembly procedure. Heating the specified components will ease the assembly process. Place the countershaft middle bearing and the countershaft front bearing into the Gear/Bearing Heater.
