Countershaft Bearing: Assembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bearing from the Gear/Bearing Heater, then install the countershaft bearing.
- If necessary, use the Thrust Washer Bearing Cup Remover/Installer to seat the bearing.

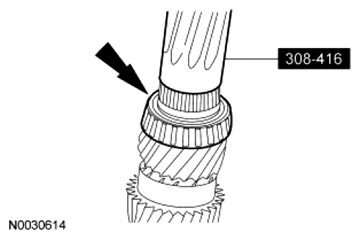

  Fig 1: Installing Countershaft Bearing
  Courtesy of FORD MOTOR CO.
Remove the bearing from the Gear/Bearing Heater, then install the rear countershaft bearing.
- If necessary, use the Thrust Washer Bearing Cup Remover/Installer to seat the bearing.

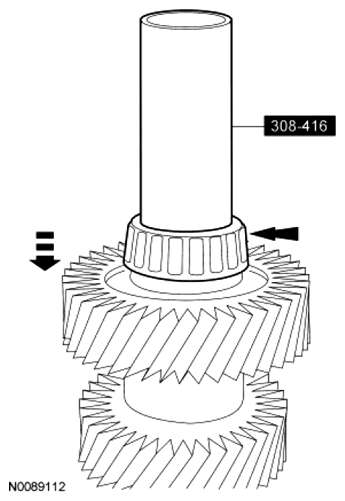

  Fig 2: Installing Rear Countershaft Bearing
  Courtesy of FORD MOTOR CO.
