Oil Pan: Installation

All vehicles

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant. Failure to follow this procedure may cause future oil leakage.
1. Inspect the oil pan. Clean the mating surface for the oil pan with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
NOTE: Make sure to install a new O-ring seal. A missing or damaged O-ring seal can cause foam in the lubrication system and low oil pressure. Failure to follow this instruction may result in engine damage.
NOTE: Clean and inspect the mating surfaces and install a new O-ring seal. Lubricate the O-ring seal with clean engine oil.
2. Install a new O-ring seal onto the oil pump screen and pickup tube.
3. Position the oil pump screen and pickup tube in the oil pan and position the oil pan and new gasket into the vehicle.

   Manual transmission equipped vehicles

4. Position the oil pan onto the engine and install one bolt at the front of the engine and one bolt at the rear of the oil pan to hold it in position.
5. Install the rear engine cover.
6. Install the flywheel. For additional information, refer to FLYWHEEL .
7. Using the Engine Support Bar, Support Hook and Engine Support Bracket, raise the engine.
   Fig 1: Identifying Engine Support Bar, Support Hook And Engine Support Bracket

   Courtesy of FORD MOTOR CO.
8. Remove the 2 bolts and lower the oil pan.

   All vehicles

NOTE: Make sure to install a new O-ring seal. A missing or damaged O-ring seal can cause foam in the lubrication system and low oil pressure. Failure to follow this instruction may result in engine damage.
NOTE: Clean and inspect the mating surfaces and install a new O-ring seal. Lubricate the O-ring seal with clean engine oil prior to installation.
9. Position the oil pump screen and pickup tube and install the bolts.
   • Tighten the oil pump screen and pickup tube-to-oil pump bolts to 10 Nm (89 lb-in).
   • Tighten the oil pump screen and pickup tube-to-spacer bolt to 25 Nm (18 lb-ft).
NOTE: If the oil pan is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure may cause future oil leakage.
Fig 2: Locating Silicone Gasket And Sealant Applying Areas On Crankshaft Rear Seal Retainer Plate-To-Cylinder Block Sealing Surface
Courtesy of FORD MOTOR CO.
10. Apply silicone gasket and sealant at the crankshaft rear seal retainer plate-to-cylinder block sealing surface.
NOTE: If the oil pan is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure may cause future oil leakage.
Fig 3: Locating Silicone Gasket And Sealant Applying Areas On Engine Front Cover-To-Cylinder Block Sealing Surface
Courtesy of FORD MOTOR CO.
11. Apply silicone gasket and sealant at the engine front cover-to-cylinder block sealing surface.
12. Position the oil pan gasket and the oil pan and loosely install the 18 bolts.
13. Tighten the 18 bolts in 3 stages, in the sequence shown in illustration.
    • Stage 1: Tighten to 2 Nm (18 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    • Stage 3: Tighten an additional 60 degrees.
      Fig 4: Identifying Oil Pan Bolts Tightening Sequence

      Courtesy of FORD MOTOR CO.

    Automatic transmission equipped vehicles

14. Lower the transmission and remove the jack.
15. Install the flexplate inspection cover.
    1. Position the flexplate inspection cover.
    2. Install the 2 bolts.
       • Tighten to 34 Nm (25 lb-ft).
         Fig 5: Identifying Flexplate Inspection Cover With Mounting Bolts

         Courtesy of FORD MOTOR CO.

    All vehicles

16. Using the Engine Support Bar, Support Hook and Engine Support Bracket, align the engine support insulator studs and lower the engine.
    Fig 6: Identifying Engine Support Bar, Support Hook And Engine Support Bracket

    Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.
17. Install 4 new RH engine support insulator nuts.
    • Tighten to 115 Nm (85 lb-ft).
      Fig 7: Locating RH Engine Support Insulator Nuts

      Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.
18. Install 3 new LH engine support insulator nuts.
    • Tighten to 200 Nm (148 lb-ft).
      Fig 8: Locating LH Engine Support Insulator Nuts

      Courtesy of FORD MOTOR CO.

    Automatic transmission equipped vehicles

19. Route the wiring harness over the top of the transmission and connect the wiring harness retainers.
20. Connect the CMS  electrical connector.

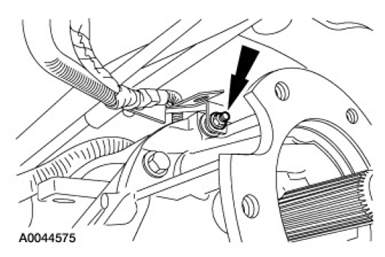

    Fig 9: Locating CMS Electrical Connector

    Courtesy of FORD MOTOR CO.
21. Connect the TSS  sensor electrical connector.
    Fig 10: Locating TSS Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
NOTE: Some vehicles are equipped with a catalytic converter delete pipe instead of a catalytic converter.
22. Install 2 new exhaust Y-pipe flange bolts and nuts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 11: Locating Exhaust Y-Pipe Flange Bolts And Nuts

      Courtesy of FORD MOTOR CO.
23. If equipped, position the skid plate and install the 4 bolts.
    • Tighten to 24 Nm (18 lb-ft).
      Fig 12: Locating Skid Plate Bolts

      Courtesy of FORD MOTOR CO.
24. Attach the fuel supply tube and the fuel vapor tube to the position retainer at the rear of the engine.
    Fig 13: Locating Fuel Vapor Tube Retainer

    Courtesy of FORD MOTOR CO.
25. Connect the fuel tube bracket and install the nut.
    • Tighten to 12 Nm (106 lb-in).
      Fig 14: Locating Fuel Tube Bracket Nut

      Courtesy of FORD MOTOR CO.
26. Install the 2 rear transmission insulator nuts.
    • Tighten to 115 Nm (85 lb-ft).
      Fig 15: Locating Rear Transmission Insulator Nuts

      Courtesy of FORD MOTOR CO.

    All vehicles

27. Position the transmission auxiliary fluid cooler tube support bracket and the starter wiring harness support bracket onto the engine front cover stud bolt and install the nut.
    • Tighten to 25 Nm (18 lb-ft).
      Fig 16: Locating Transmission Auxiliary Fluid Cooler Tube Support Bracket Nut

      Courtesy of FORD MOTOR CO.
28. If equipped, position the engine oil cooler and install the threaded insert.
    • Tighten to 58 Nm (43 lb-ft).
29. Install a new oil filter.
    • Tighten to 16 Nm (142 lb-in).
30. Install the TB  spacer. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.8L (3V) .
31. Install the engine cooling fan. For additional information, refer to ENGINE COOLING .
32. Install the generator. For additional information, refer to CHARGING SYSTEM .
33. Fill the crankcase with clean engine oil.
