Crankshaft Position (CKP) Sensor, Engine Front Cover and Gaskets
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

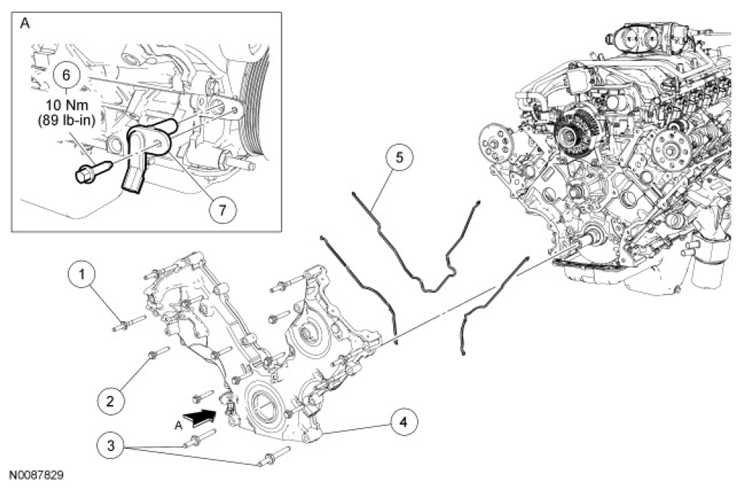

Fig 1: Exploded View Of Crankshaft Position (CKP) Sensor, Engine Front Cover And Gaskets With Torque Specifications
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W709573 | Engine front cover stud (5 required) |
| 2 | N806177 | Engine front cover bolt (8 required) |
| 3 | N808529 | Engine front cover studs (2 required) |
| 4 | 6C086 | Engine front cover |
| 5 | 6D081 | Engine front cover gasket (3 required) |
| 6 | N806155 | Crankshaft Position (CKP) sensor bolt |
| 7 | 6C315 | CKP sensor |
