Transmission Fluid Level Indicator Tube, Crankcase Vent Tube and Coolant Hose
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

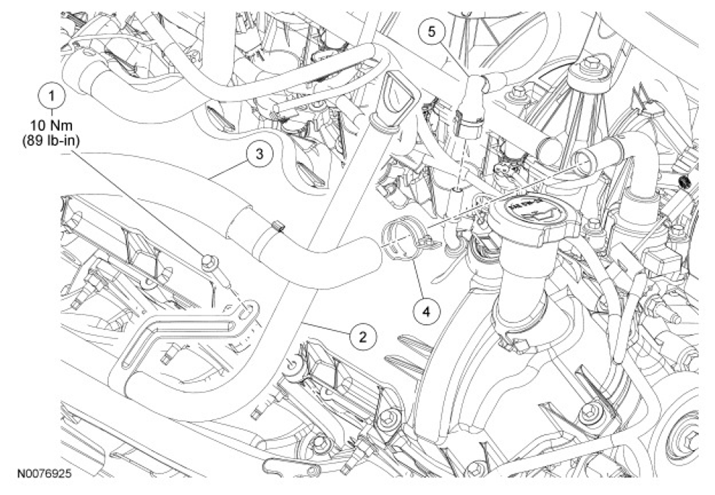

Fig 1: Transmission Fluid Level Indicator Tube, Crankcase Vent Tube And Coolant Hose With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N859356 | Transmission fluid level indicator tube support bracket bolt |
| 2 | 7A228 | Transmission fluid level indicator tube |
| 3 | 9929 | Heater coolant hose |
| 4 | - | Heater coolant hose clamp |
| 5 | 6758 | Crankcase ventilation tube quick connect coupling |
