Turbocharger - Body Off: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Turbocharger Lifting Bracket | 303-1266 |
Material
| Item | Specification |
|---|---|
| SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

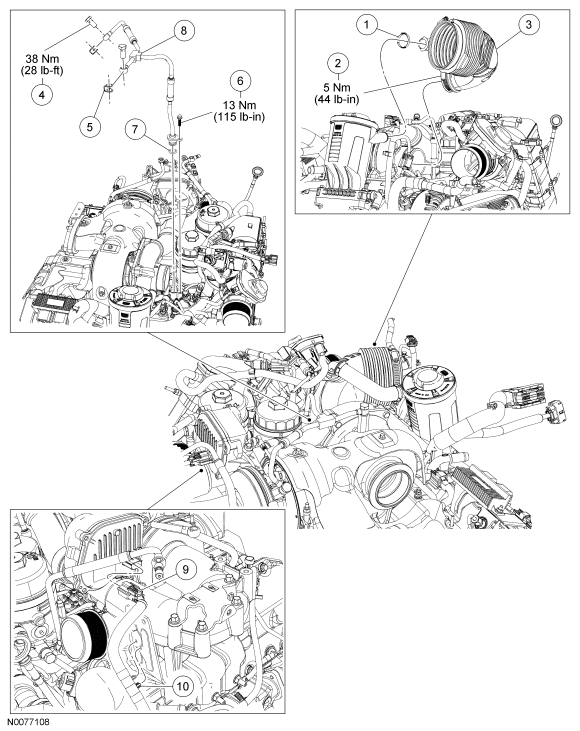

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K786 | Air cleaner outlet tube-to-crankcase vent oil separator hose clamp |
| 2 | 6K789 | Air cleaner outlet tube clamp |
| 3 | 6C646 | Air cleaner outlet tube |
| 4 | W302472 | Turbocharger oil supply tube banjo fitting bolt (2 required) |
| 5 | W302474 | Copper sealing washer (2 required) |
| 6 | W300005 | Turbocharger oil supply tube bolt |
| 7 | W302203 | O-ring seal |
| 8 | 9T516 | Turbocharger oil supply tube |
| 9 | - | Turbocharger actuator electrical connector (part of 12B637) |
| 10 | - | Pin-type retainer (part of 12B637) |

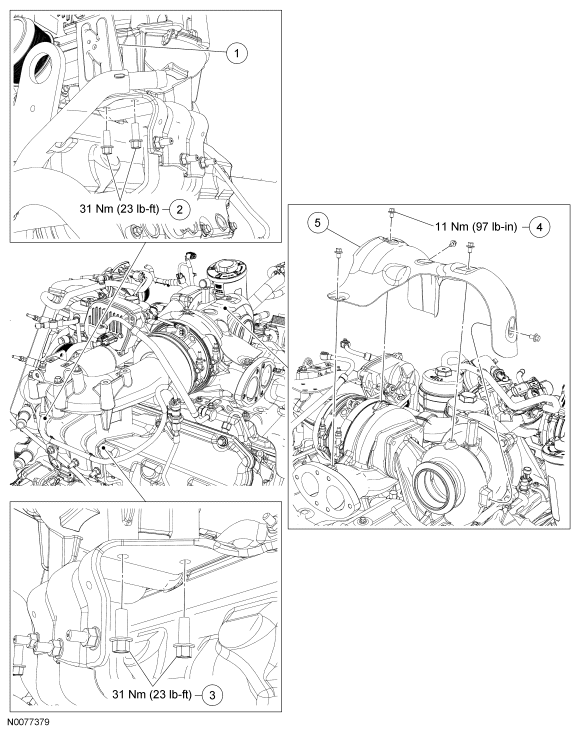

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C131 | Front fuel cooler bracket |
| 2 | W302649 | Turbocharger crossover tube front bolts (2 required) |
| 3 | W302649 | Turbocharger crossover tube rear bolts (2 required) |
| 4 | W301643 | Turbocharger heat shield bolt (5 required) |
| 5 | 9F460 | Turbocharger heat shield |

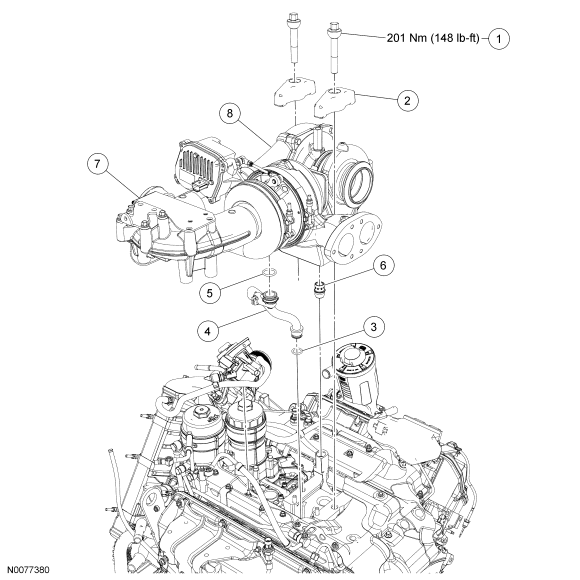

| Item | Part Number | Description |
|---|---|---|
| 1 | W302501 | Turbocharger hold-down bolt (2 required) |
| 2 | 9P462 | Turbocharger hold down (2 required) |
| 3 | W302511 | O-ring seal |
| 4 | 9T516 | High-pressure drain tube |
| 5 | W302512 | O-ring seal |
| 6 | 9T514 | Low-pressure drain tube |
| 7 | 9346 | Fuel cooler bracket |
| 8 | 6K682 | Turbocharger assembly |
