Check Radial Shaft Movement - Off Vehicle
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

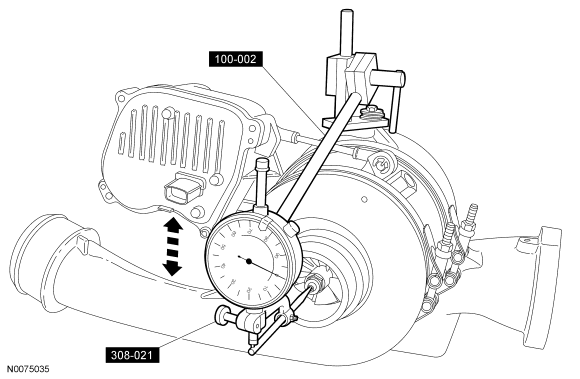

Fig 1: Checking High-Pressure Turbocharger Radial Shaft Movement Using Special Tool (100-002, 308-021)
- Using the special tool, check the high-pressure turbocharger radial shaft movement. Compare the total reading with the radial shaft movement SPECIFICATIONS .
- Using the special tool, check the low-pressure turbocharger radial shaft movement. Compare the total reading with the radial shaft movement SPECIFICATIONS .
NOTE:
Use a turbocharger bolt to mount the dial indicator with the holding fixture. Position the tip of the dial indicator arm into the depression in the end of the turbocharger shaft.
NOTE:
The radial shaft movement check is done by pushing up and down on the turbocharger shaft. Zero the dial indicator, then push up on the shaft and take a reading, then push down on the shaft and take a reading. Add the 2 readings together to get the total reading.

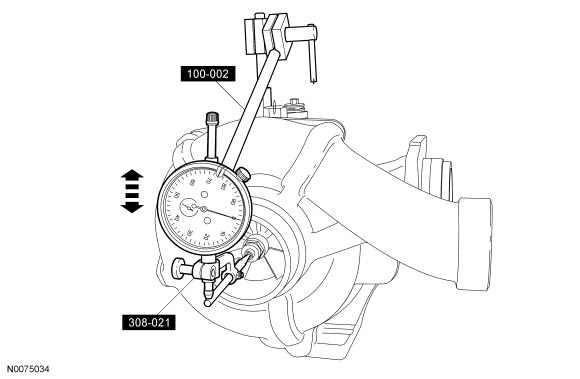

Fig 2: Checking Low-Pressure Turbocharger Radial Shaft Movement Using Special Tool (100-002, 308-021)
NOTE:
Use a turbocharger bolt to mount the dial indicator with holding fixture. Position the tip of the dial indicator arm into the depression in the end of the turbocharger shaft.
NOTE:
The radial shaft movement check is done by pushing up and down on the turbocharger shaft. Zero the dial indicator, then push up on the shaft and take a reading, then push down on the shaft and take a reading. Add the 2 readings together to get the total reading.
