Glass, Frames And Mechanisms - Exploded View, Rear
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Power sliding window shown, all others similar.

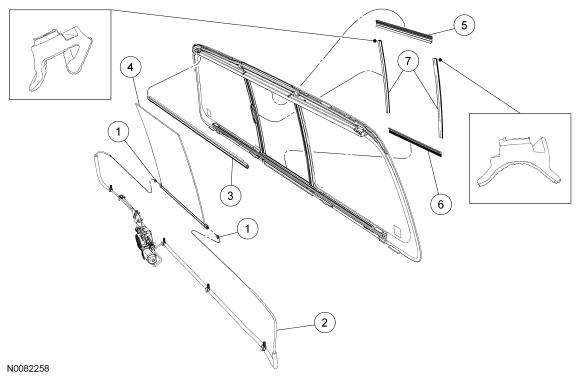

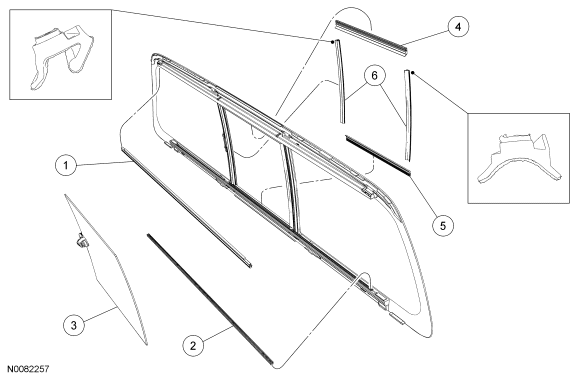

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Sliding glass bumpers (power sliding window only) (part of sliding window assembly) |
| 2 | 2523394 | Window regulator and motor (power sliding window only) |
| 3 | 25422B30 | Rear window glass assembly |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bumpers (part of sliding window assembly) |
| 2 | 2523394 | Power sliding window regulator and motor assembly |
| 3 | - | Upper rail filler (part of sliding window assembly) |
| 4 | - | Power sliding glass panel |
| 5 | 2542052 | Upper weatherstrip |
| 6 | 2542052 | Lower weatherstrip |
| 7 | 2542052 | Vertical weatherstrips (part of vertical seal service kit) |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper rail filler (part of window glass assembly) |
| 2 | - | Lower rail filler (part of window glass assembly) |
| 3 | 2542006 | Sliding glass panel |
| 4 | 2542052 | Upper weatherstrip |
| 5 | 2542052 | Lower weatherstrip |
| 6 | 2542052 | Vertical weatherstrips (part of vertical seal service kit) |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bumpers (part of sliding window assembly) |
| 2 | W705382 | Power sliding window regulator and motor bolts (3 required) |
| 3 | 2523394 | Power sliding window regulator and motor assembly |
| 4 | - | Electrical connector |
- For additional information, refer to the individual procedures.
