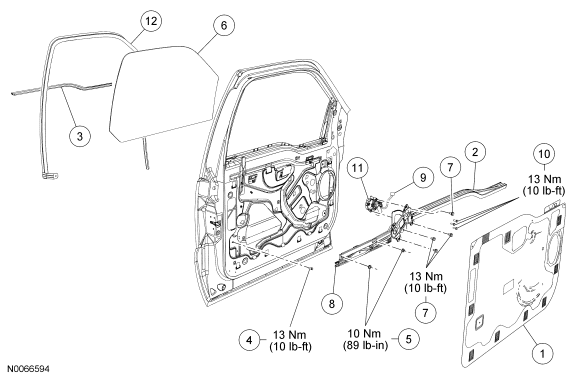

Glass, Frames And Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 237A05 LH/ 237A04 RH | Water shield |
| 2 | 21435 LH/ 21434 RH | Interior belt line weatherstrip |
| 3 | 21453 LH/ 21452 RH | Exterior belt line weatherstrip |
| 4 | W704652 | Window glass run bolt (3 required) |
| 5 | N620480 | Glass clamp nuts (2 required) |
| 6 | 21457 LH/ 21456 RH | Front door window glass |
| 7 | - | Front door window regulator bolts (4 required) |
| 8 | 23201/23200 | Front door window regulator |
| 9 | 14631 LH/ 14630 RH | Window regulator motor electrical connector |
| 10 | - | Window motor bolts (3 required) |
| 11 | 14A365 LH/ 14A364 RH | Front door window motor |
| 12 | 21537 LH/ 21536 RH | Front door window glass run |
- For additional information, refer to the procedures.
