Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item
Motorcraft Metal Surface Prep ZC-31-A

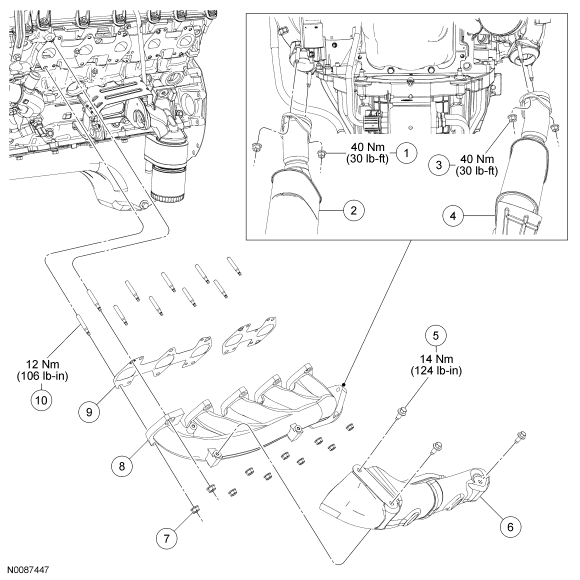

Fig 1: Exploded View Of LH Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	RH exhaust Y-pipe flange nut (2 required)
2	5F250	RH exhaust Y-pipe flange
3	W705443	LH exhaust Y-pipe flange nut (2 required)
4	5F250	LH exhaust Y-pipe flange
5	N806543	Exhaust manifold heat shield bolt (3 required)
6	4569	Exhaust manifold heat shield
7	W701706	Exhaust manifold nut (10 required)
8	9431	Exhaust manifold
9	9Y431	Exhaust manifold gasket (2 required)
10	W701706	Exhaust manifold-to-cylinder head stud (10 required)
