Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F070
Courtesy of FORD MOTOR CO.	Support Bracket, Engine	303-639
Courtesy of FORD MOTOR CO.	Support Hook	303-F071

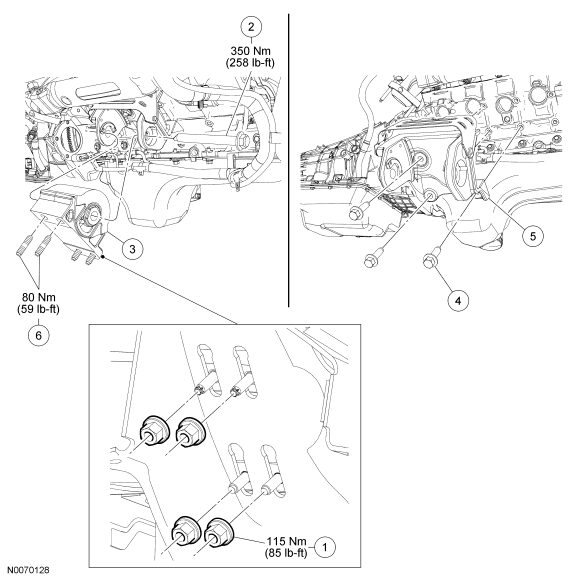

Fig 1: Exploded View Of RH Engine Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709771	RH engine support insulator nut (4 required)
2	W711959	RH engine support insulator through bolt
3	6038	RH engine support
4	W712861	RH engine support insulator bracket bolt (3 required)
5	6046	RH engine support insulator bracket
6	W790018	RH engine support insulator studs (2 required)

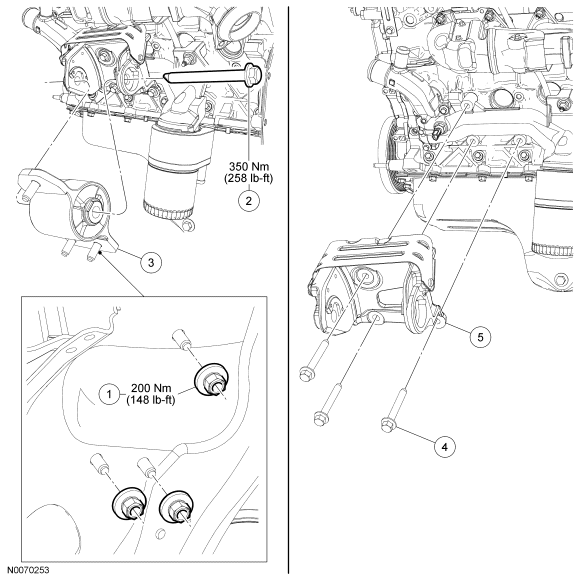

Fig 2: Exploded View Of LH Engine Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711336	LH engine support insulator nut (3 required)
2	W711959	LH engine support insulator through bolt
3	6B032	LH engine support
4	W712860	LH engine support insulator bracket bolt (3 required)
5	6B033	LH engine support insulator bracket
