Engine Front Cover: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Crankshaft Front Oil Seal | 303-635 | |
| Installer, Crankshaft Vibration Damper | 303-102 (T74P-6316-B) | |
| Installer, Front Cover Oil Seal | 303-335 (T88T-6701-A) | |
| Remover, Crankshaft Front Oil Seal | 303-107 (T74P-6700-A) | |
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | N808102 | Accessory drive belt idler pulley bolt |
| 3 | 19A216 | Accessory drive belt idler pulley |
| 4 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | W701512 | Crankshaft pulley bolt |
| 7 | N806165 | Crankshaft pulley bolt washer |
| 8 | 6316 | Crankshaft pulley |
| 9 | 6700 | Crankshaft front seal |
| Item | Part Number | Description |
|---|---|---|

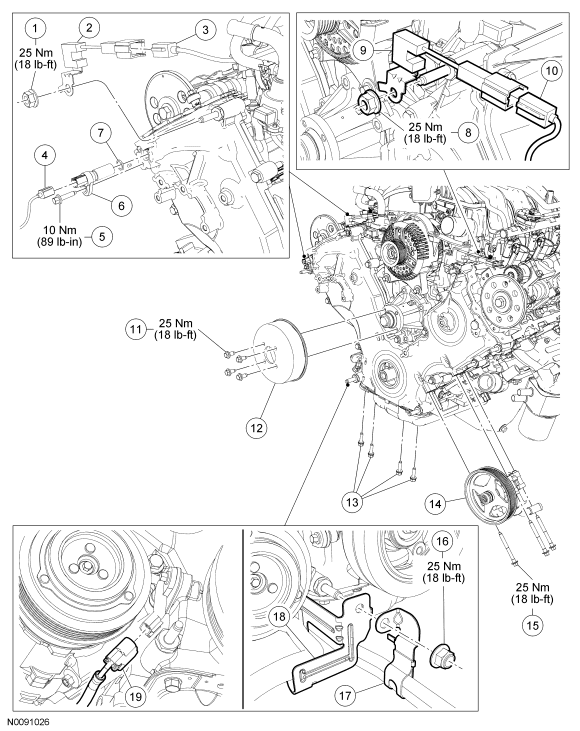

| 1 | N804758 | RH radio ignition interference capacitor nut |
| 2 | 18801 | RH radio ignition interference capacitor |
| 3 | 18801 | RH radio ignition interference capacitor electrical connector (part of 12B637) |
| 4 | - | Camshaft Position (CMP) sensor electrical connector (part of 12B637) |
| 5 | N806155 | CMP sensor bolt |
| 6 | 6B288 | CMP sensor |
| 7 | - | CMP sensor O-ring seal |
| 8 | N804758 | LH radio ignition interference capacitor nut |
| 9 | 18801 | LH radio ignition interference capacitor |
| 10 | 18801 | LH radio ignition interference capacitor electrical connector (part of 12B637) |
| 11 | N806282 | Coolant pump pulley bolt (4 required) |
| 12 | 8A528 | Coolant pump pulley |
| 13 | W701605 | Oil pan bolts (4 required) |
| 14 | 3A696 | Power steering pump |
| 15 | W706447 | Power steering pump bolt (3 required) |
| 16 | W605289 | Transmission fluid cooler tube and battery wiring harness support brackets nut |
| 17 | - | Transmission fluid cooler tube support bracket |
| 18 | - | Starter wiring harness support bracket |
| 19 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12B637) |
| Item | Part Number | Description |
|---|---|---|

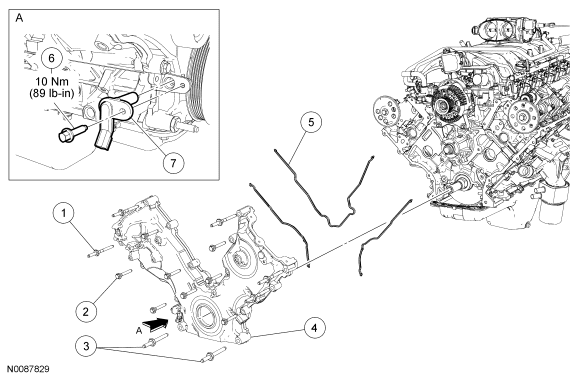

| 1 | W709573 | Engine front cover stud (5 required) |
| 2 | N806177 | Engine front cover bolt (8 required) |
| 3 | N808529 | Engine front cover studs (2 required) |
| 4 | 6C086 | Engine front cover |
| 5 | 6D081 | Engine front cover gasket (3 required) |
| 6 | N806155 | Crankshaft Position (CKP) sensor bolt |
| 7 | 6C315 | CKP sensor |
