Intake Manifold Assembly: Notes

WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

Fig 1: Exploded View Of Throttle Body (TB) & TB Spacer With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500215-S	Throttle Body (TB) bolt (4 required)
2	9F991	TB
3	9E936	TB gasket
4	W503280-S	Lower TB spacer bolts (4 required)
5	W503275-S	Upper TB spacer bolts (2 required)
6	9A589	TB spacer
7	9L437	TB spacer gasket
8	-	Intake Manifold Runner Control (IMRC) actuator pivot pin C-clip
9	W503917-S	IMRC actuator bolt (3 required)
10	9J559	IMRC actuator

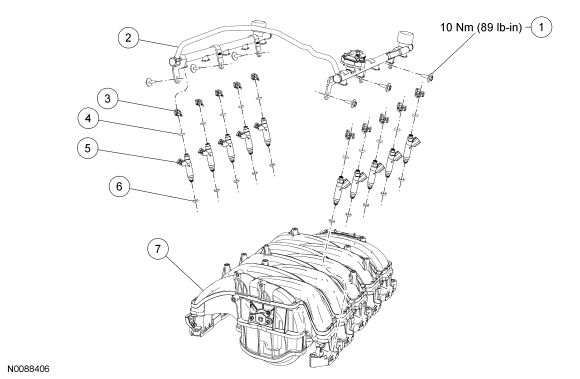

Fig 2: Exploded View Of Fuel Rail & Fuel Injector With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500211	Fuel rail bolt (6 required)
2	9F792	Fuel rail
3	9F907	Fuel injector-to-fuel rail locking clip (10 required)
4	9F798	Fuel injector-to-fuel rail O-ring seal (10 required)
5	9F593	Fuel injector (10 required)
6	9F798	Fuel injector-to-intake manifold O-ring seal (10 required)
7	9Y452	Intake manifold
