Wheel Spindle - F-250, F-350: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Pitman Arm Puller | 211-003 (T64P-3590-F) |

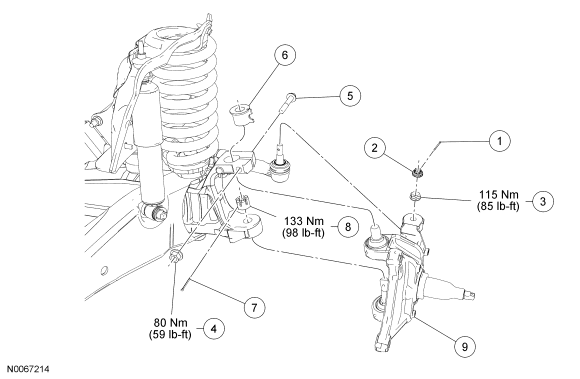

NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525287 | Cotter pin |
| 2 | W711374 | Tie-rod end nut retainer |
| 3 | W711374 | Tie-rod end nut |
| 4 | W520114 | Upper ball joint nut |
| 5 | N606085 | Upper ball joint bolt |
| 6 | 3B404 | Camber adjustment sleeve |
| 7 | W525287 | Cotter pin |
| 8 | 383489 | Lower ball joint nut |
| 9 | 3106 LH/ 3105 RH | Wheel spindle |
