Track Bar - F-450, F-550: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
 Courtesy of FORD MOTOR CO.
|
Steering Arm Remover |
211-003 |
Courtesy of FORD MOTOR CO.

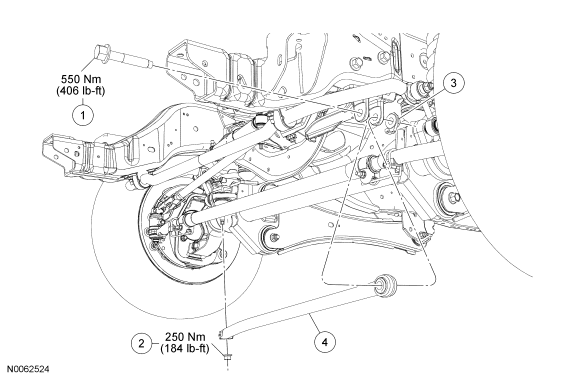

| Item |
Part Number |
Description |
| 1 |
W706345 |
Track bar-to-frame bolt |
| 2 |
N807659 |
Track bar ball joint nut |
| 3 |
W520117 |
Track bar-to-frame nut |
| 4 |
3B239 |
Track bar |
