Spring - F-450, F-550: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

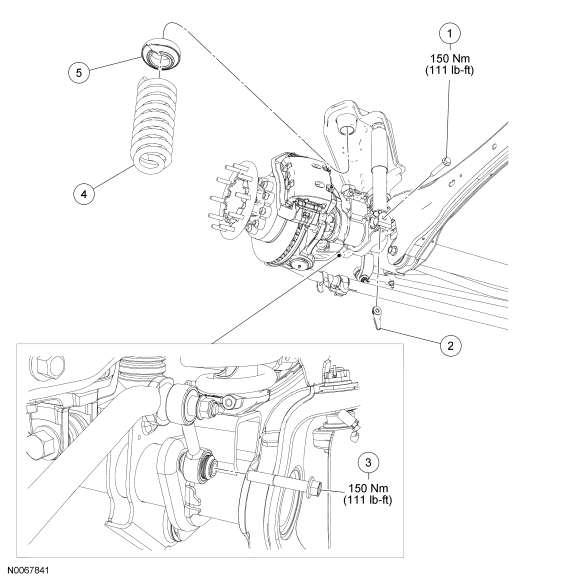

Fig 1: Exploded View Of Spring With Torque Specifications - F-450, F-550

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500765	Shock absorber lower bolt
2	W701642	Shock absorber lower flag nut
3	5C491	Stabilizer bar link lower bolt
4	5310	Spring
5	5415	Spring upper insulator
