RH Exhaust Manifold Nuts, Studs, Exhaust Manifold and Gaskets

WARNING: This page is about a different car, the 2008 Ford Pickup and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

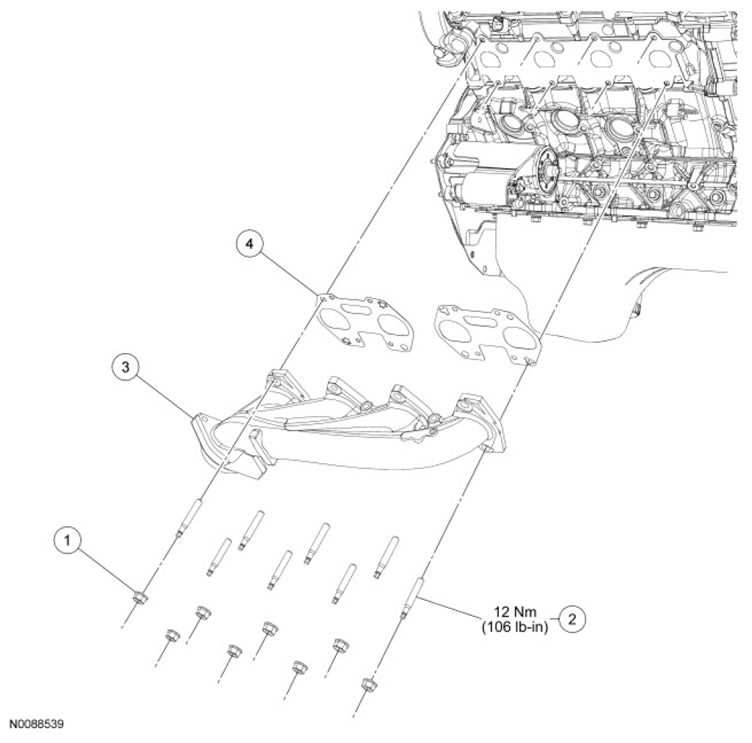

Fig 1: RH Exhaust Manifold Nuts, Studs, Exhaust Manifold And Gaskets With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W701706	Exhaust manifold nut (8 required)
2	W701706	Exhaust manifold-to-cylinder head stud (8 required)
3	9430	Exhaust manifold
4	9Y431	Exhaust manifold gasket (2 required)
