Roll Stabilization Electric Controller Unit, Component Description - GF27.19-P-5145A

Model 223

Courtesy of MERCEDES-BENZ USA

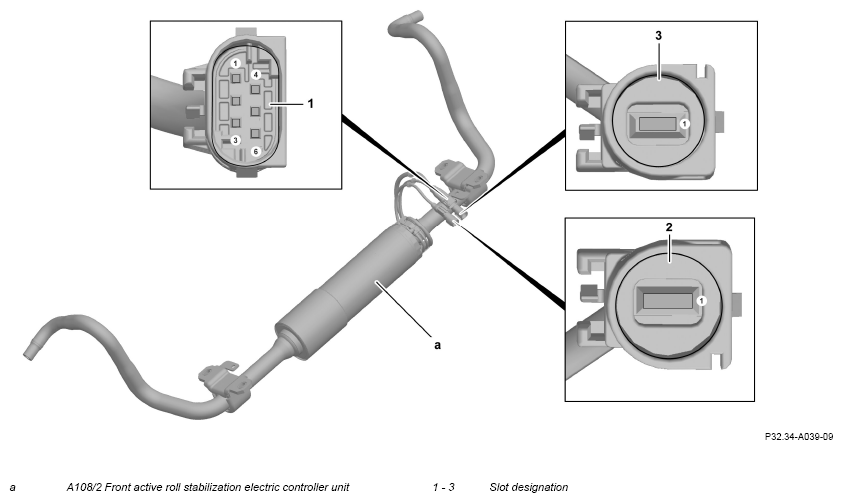

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

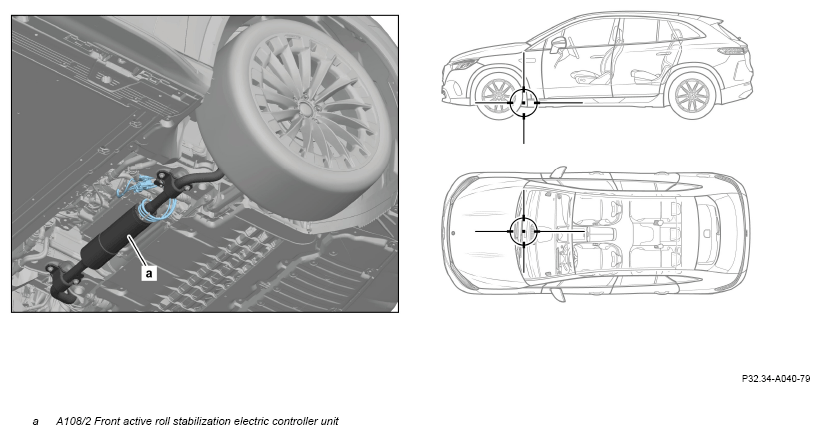

Fig 1: Front Active Roll Stabilization Electric Controller Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on model 223

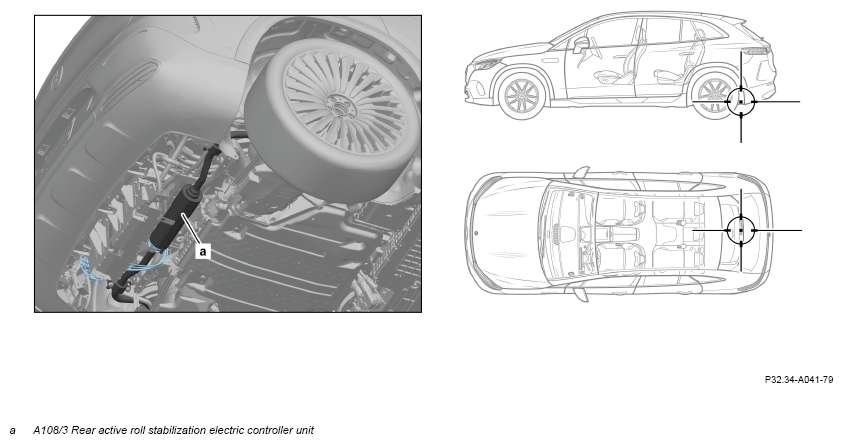

Fig 2: Rear Active Roll Stabilization Electric Controller Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on model 223
