Rear Axle Drive Unit Transmission Actuator Motor, Component Description - GF27.60-P-0003A

Model 223

G16231049Courtesy of MERCEDES-BENZ USA

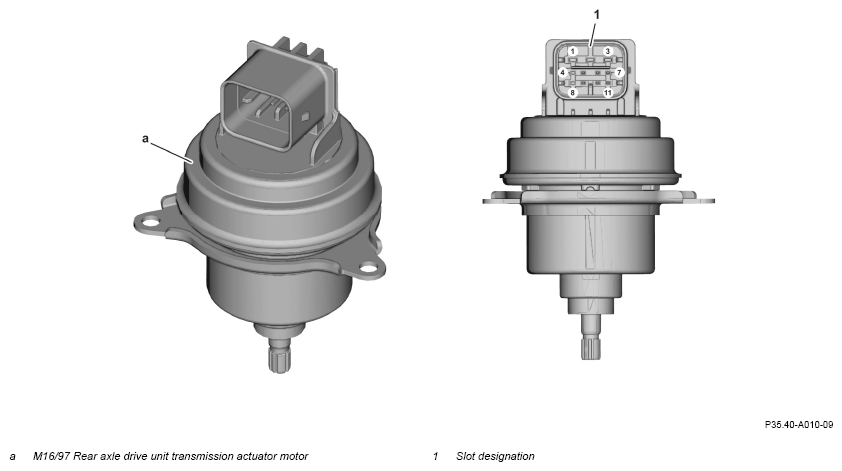

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

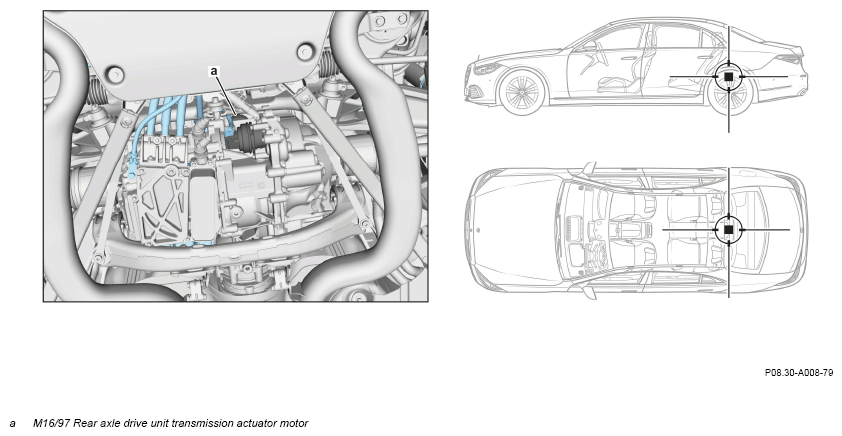

Fig 1: Rear Axle Drive Unit Transmission Actuator Motor Components Location - Model 223
G16231050Courtesy of MERCEDES-BENZ USA

Location
