Fully Integrated Transmission Control Electric Controller Unit, Component Description - GF27.19-P-5153A
Model 223 with transmission 725.0
Model 223 with transmission 725.1

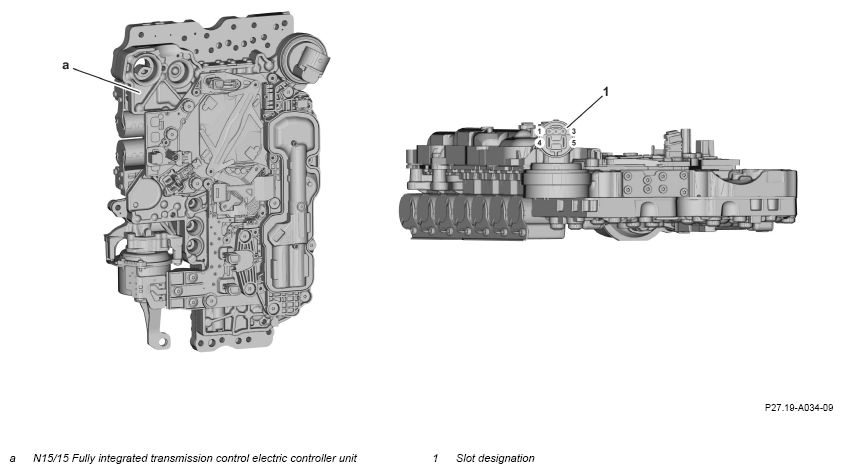

Illustration valid for model 223 with transmission 725.1
The numbers on the pins indicate the pin numbering of the slots.

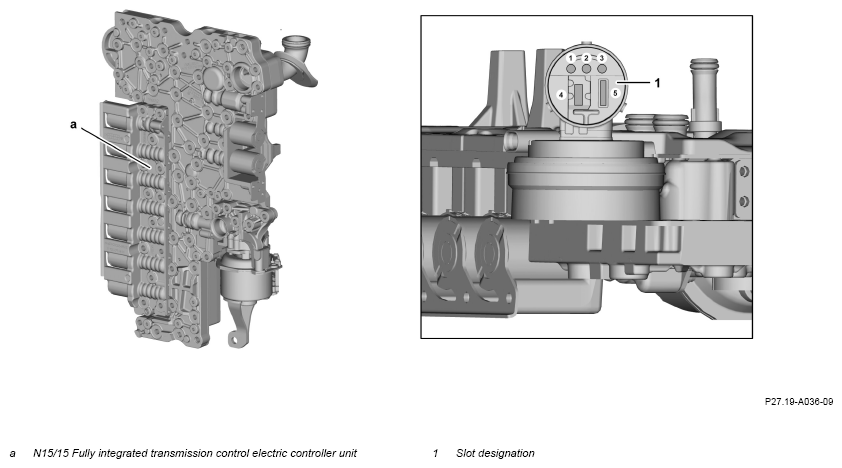

Illustration valid for model 223 with transmission 725.0
The numbers on the pins indicate the pin numbering of the slots.

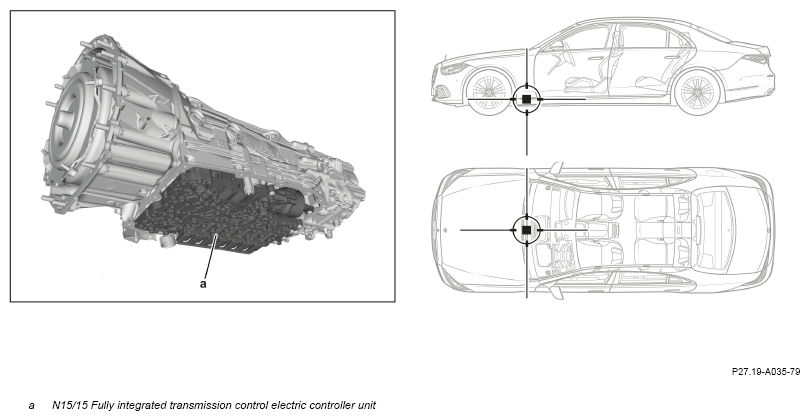

Fig 1: Fully Integrated Transmission Control Electric Controller Unit Components Location - Model 223
Location in model 223
