Electric Machine Temperature Sensor, Component Description - GF27.19-P-1118A

Model 223

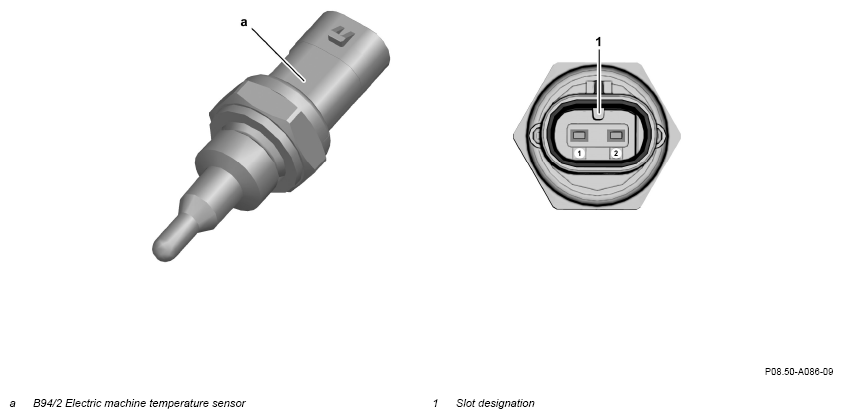

G16231020Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Electric Machine Temperature Sensor Components Location - Model 223

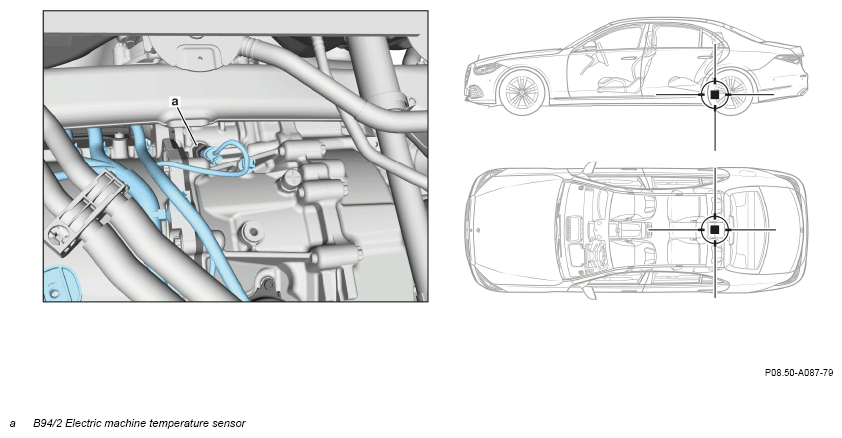

G16231021Courtesy of MERCEDES-BENZ USA

Location
