All-Wheel Drive Control Unit, Component Description - GF28.19-P-3211A

Model 223

G16231051Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

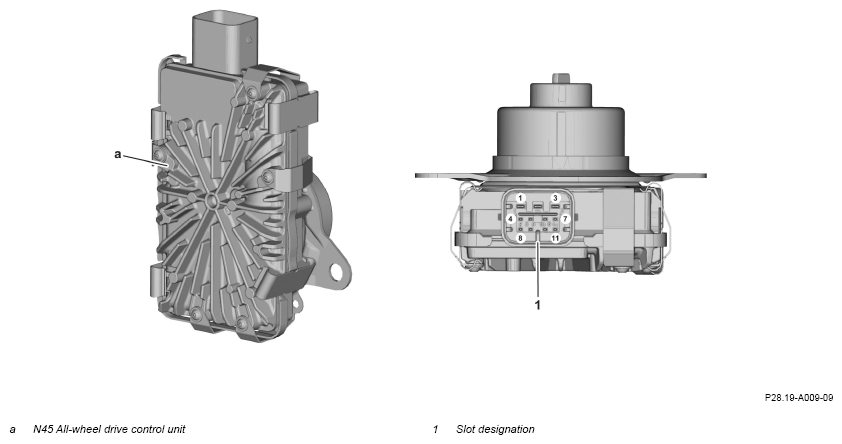

Fig 1: All-Wheel Drive Control Unit Components Location - Model 223
G16231052Courtesy of MERCEDES-BENZ USA

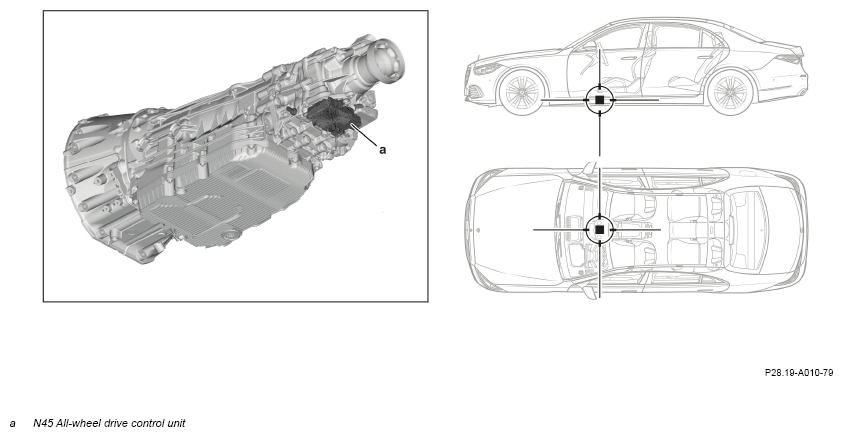

Location
