Check Length Of Thread On Front Axle Tie Rod - AR40.20-P-0002-01S
Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code Z07 (B7 armoring on special protection version) | Model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive) except code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01F | Remaining thread length of tie rod | max. | mm | 95, 6 | 117, 1 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 294 | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01F | Remaining thread length of tie rod | max. | mm | 81, 7 | 86, 3 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 295 | Model 296 | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01F | Remaining thread length of tie rod | max. | mm | 86, 3 | 86, 3 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 297 | ||
|---|---|---|---|---|
| BE46.10-P-1001-01F | Remaining thread length of tie rod | max. | mm | 86, 3 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 192, 232 | ||
|---|---|---|---|---|
| BE46.10-P-1001-01G | Remaining thread length of tie rod | max. | mm | 68, 3 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 206 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 206 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01H | Remaining thread length of tie rod | max. | mm | 102, 6 | 66, 4 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 214 (except 214.063/263) except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 214 (except 214.063/263) with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01H | Remaining thread length of tie rod | max. | mm | 99, 6 | 68, 8 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 214.063/263 | Model 236 | ||
|---|---|---|---|---|---|
| BE46.10-P-1001-01H | Remaining thread length of tie rod | max. | mm | 78 | 99, 6 |
CHECK VALUES FOR STEERING SHAFT
| Number | Designation | Model 254 | ||
|---|---|---|---|---|
| BE46.10-P-1001-01H | Remaining thread length of tie rod | max. | mm | 75, 3 |

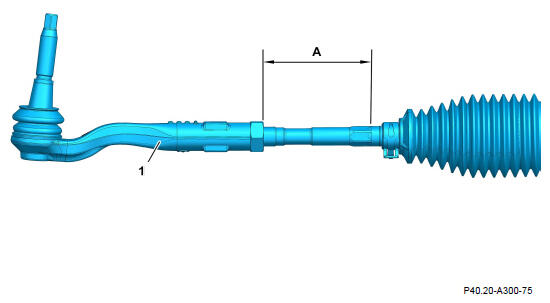

- Check dimension (A) on tie rod between nut and end of hexagon.
Model 206
except code M005 (Vehicles with
4MATIC/all-wheel drive)
Model 206
with code M005 (Vehicles with
4MATIC/all-wheel drive)
Model 214 (except 214.063/263)
except code M005 (Vehicles with
4MATIC/all-wheel drive)
Model 214 (except 214.063/263)
with code M005 (Vehicles with
4MATIC/all-wheel drive)
Model 214.063/263
Model 236
Model 254
Model 223
except code M005 (Vehicles with
4MATIC/all-wheel drive)
except code Z07 (B7 armoring on
special protection version)
Model 223
with code M005 (Vehicles with
4MATIC/all-wheel drive)
except code Z07 (B7 armoring on
special protection version)
Model 223
with code Z07 (B7 armoring on
special protection version)
Model 294
Model 295
Model 296
Model 297
