Home >> Mercedes Benz >> 2025 >> S580 >> Repair and Diagnosis >> Suspension >> Wheels & Tire System >> Wheels, Chassis Alignment -- 223 Chassis >> Testing & Repair >> (Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01SK)

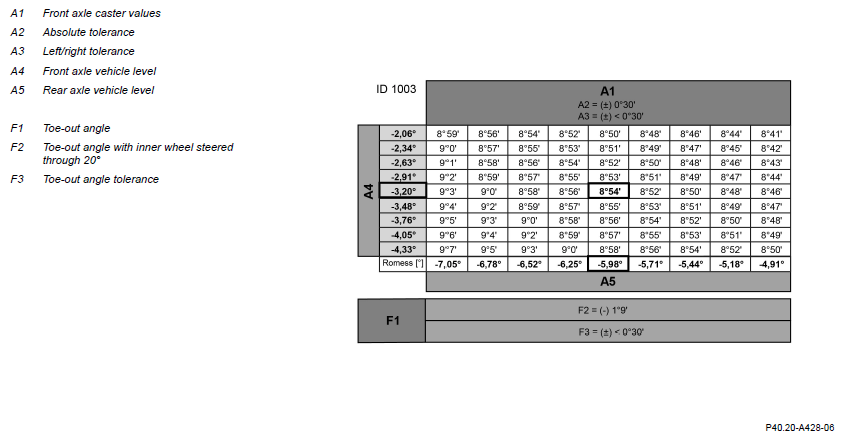

(Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01SK)

Model 223.182

G16227940

Courtesy of MERCEDES-BENZ USA

G16227941

Courtesy of MERCEDES-BENZ USA
