Check Condition Of Elements For Shock Absorption And Springing - AP32.25-P-3255J
Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 490 (Electrohydraulic suspension)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 490 (Electrohydraulic suspension)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||
| Check | |||

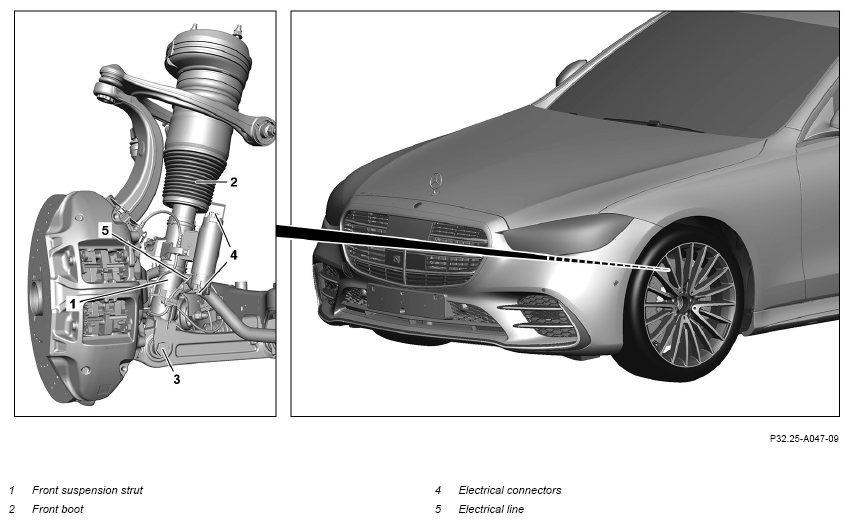

| 2 | Check front suspension struts (1) for damage and fluid loss. | If problems are determined, ↓ rectify the problems. |
|
| 3 | Check that front boots (2) are correctly seated and are not damaged. | If problems are determined, ↓ rectify the problems. |
|
| 4 | Check electrical connectors (4) and electric lines (5) for damage, correct routing and correct mounting. | If problems are determined, ↓ rectify the problems. |
|

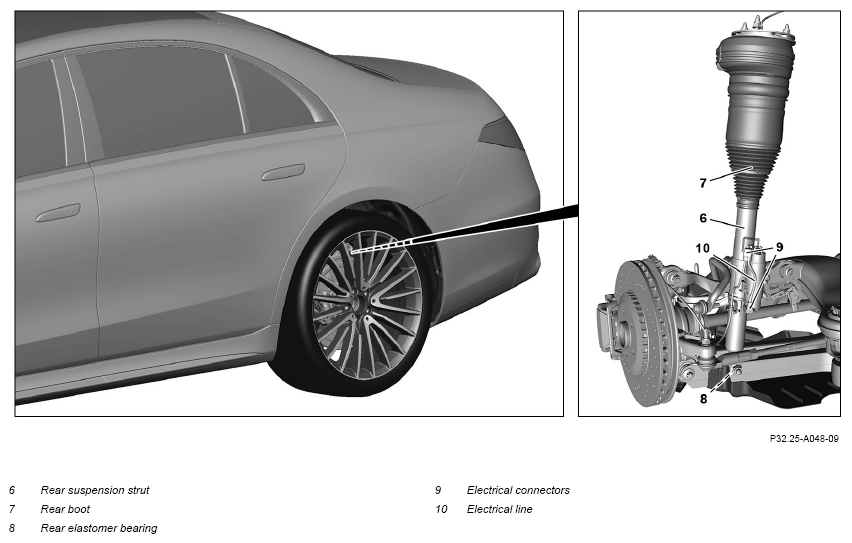

| 5 | Check rear suspension struts (6) for fluid loss. | If problems are determined, ↓ rectify the problems. |
|
| 6 | Check that the rear boots (7) are correctly seated and are not damaged. | If problems are determined, ↓ rectify the problems. |
|
| 7 | Check rear elastomer bearings (8) for cracks, deformation and wear; also check for play by firmly tugging and pushing on rear suspension struts (6). | If problems are determined, ↓ rectify the problems. |
AP32.00-P-3255-01A |
| 8 | Check electrical connectors (9) and electric lines (10) for damage, correct routing and correct mounting. | If problems are determined, ↓ rectify the problems. |
|
| Finishing activity | |||
| 9 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A |
