Remove/Install Rear Axle Wheel Hub - AR35.20-P-0311SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

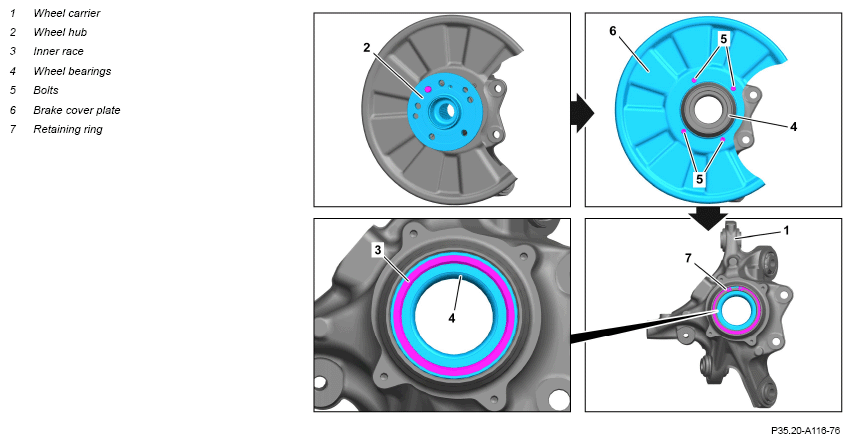

| 1 | Remove wheel carrier (1). | AR35.20-P-0115S | |
| 2 | Press out wheel hub (2). | Support inner races (3) of wheel bearing (4) using a sleeve. Otherwise wheel bearing (4) will be damaged. Workshop press |
Fig 4 |
| Fig 1 | |||
| Fig 2 | |||
| 3 | Unscrew screws (5) and remove brake cover plate (6). | *BA42.10-P-1004-06I | |
| 4 | Remove retaining ring (7). | Circlip pliers |
|
| 5 | Place wheel carrier (1) with bearing eye directly onto press and press out wheel bearing (4) up to contact surface. | Do not subject inner races (3) of wheel bearing (4) to loads. Otherwise wheel bearing (4) will be damaged. Workshop press with a force of at least 5 kN |
Fig 2 |
| Fig 3 | |||
| 6 | Place wheel carrier (1) at screw connection points of brake cover plate (6) and press out wheel bearing (4) completely. | Do not subject inner races (3) of wheel bearing (4) to loads. Otherwise wheel bearing (4) will be damaged. Workshop press with a force of at least 5 kN |
Fig 2 |
| Fig 3 | |||
| Check | |||
| 7 | Check wheel carrier (1) for damage. | If problems are found, ↓ replace wheel carrier (1). |
|
| 8 | Install in the reverse order. |
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA42.10-P-1004-06I | Bolt, brake cover plate to wheel carrier | Nm | 14 |
