Remove/Install Rear Axle Thrust Arm - AR35.20-P-0113S

Model 223 with engine 176, 256, 279, 656

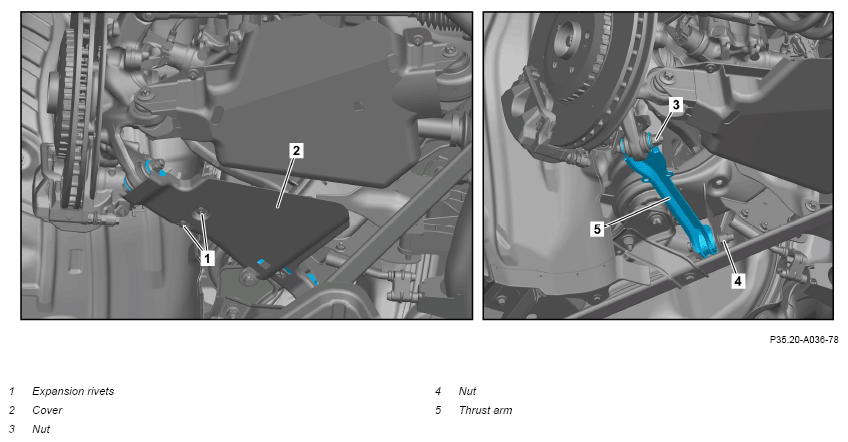

Fig 1: Rear Axle Thrust Arm Components Location - Model 223 With Engine 176, 256, 279 (Shown On Left Side Except Code Z07)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle except code Z07 (B7 armoring for special protection version)

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding rear wheel.		AR40.10-P-1102A
2	Remove brake disk.		AR42.10-P-0240S
3	Release side underfloor paneling in area of thrust arm (5).	Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version)	AR61.30-P-1001S
4	Unscrew expansion rivets (1) and remove cover	Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version)
5	Remove nut (3) and remove screw of thrust arm (5) from wheel carrier.	Screw/nut, thrust arm to wheel carrier	*BA35.20-P-1002-05M
6	Remove nut (4) and remove screw of thrust arm (5) from rear axle carrier.	Screw/nut, thrust arm to rear axle carrier	*BA35.20-P-1001-05M
7	Remove thrust arm (5).
	Check
8	Check thrust arm (5) for condition and damage.	If there is a problem, ↓ replace thrust arm (5).
9	Check elastomer bearing in wheel carrier for condition and damage.	If there is a problem,
		↓ replace elastomer bearing in wheel carrier. Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version)	AR35.20-P-3403S
		replace wheel carrier. Model 223 with engine 176, 256, 279, 656 with code Z07 (B7 armoring on special protection version)
			AR35.20-P-0115S
10	Install in the reverse order.
