Press Out/In Rear Elastomer Bearing For Rear Axle Differential Transmission Mounting - AR35.10-P-0052-01S

Model 223

except code Z07 (B7 armoring on special protection version)

Notes on safety-relevant components

AH00.00-Z-0019-01A

Number	Designation	Order number
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 L	A 000 989 18 60 09

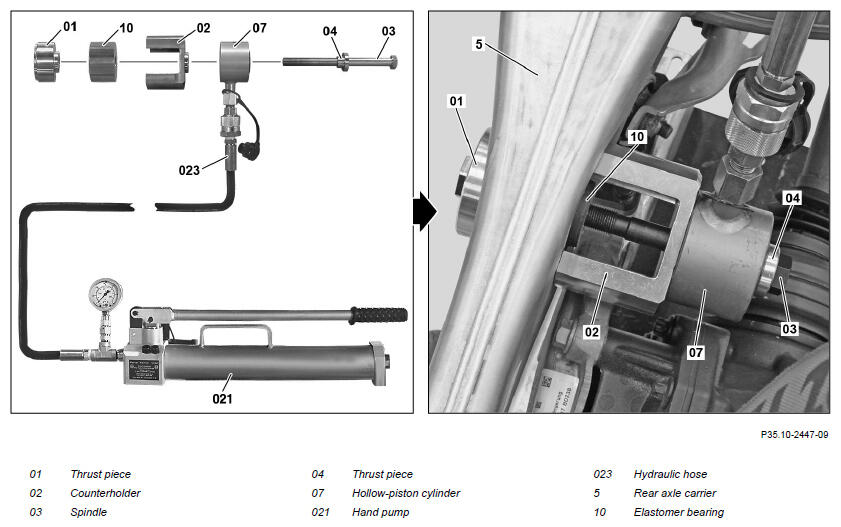

Courtesy of MERCEDES-BENZ USA

Example illustration

Remove

Required special tools:

• Hydraulic cylinder (07) 001 589 60 33 00
• Hydraulic hose (023) 652 589 00 33 23
• Hand pump (021) 652 589 00 33 21

The following tool is required from the extraction and insertion tool 221 589 01 43 00:

• Thrust piece (01) 221 589 01 43 01
• Counterholder (02) 221 589 01 43 02
• Spindle (03) 221 589 01 43 03
• Thrust piece (04) 221 589 01 43 04

1. Attach hydraulic cylinder (07) with hydraulic hose (023) to hand pump (021).
2. Position thrust piece (01) counterholder (02) and hydraulic cylinder (07) with spindle (03) and thrust piece (04) on rear axle carrier (5) and elastomer bearing (10) as shown.
3. Press elastomer bearing (10) forward out of rear axle carrier (5).

   If hydraulic cylinder (07) reaches its maximum stroke, release pressure on hand pump (021), and screw spindle (03) further into thrust piece (01), then repeat press-out procedure.

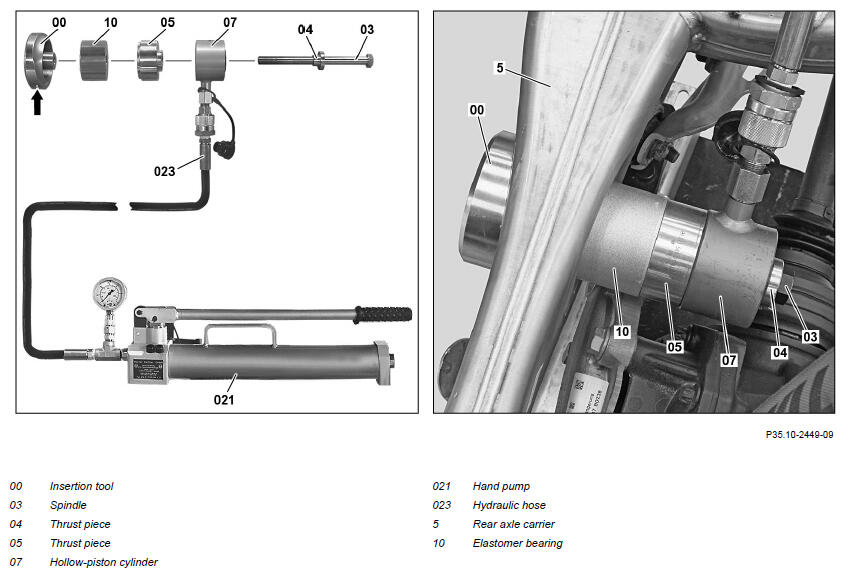

   Courtesy of MERCEDES-BENZ USA

   Example illustration

   Install

   Required special tools:

   • Hydraulic cylinder (07) 001 589 60 33 00
   • Hydraulic hose (023) 652 589 00 33 23
   • Hand pump (021) 652 589 00 33 21
   • Insertion tool (00) 222 589 04 43 00

   The following tool is required from the extraction and insertion tool 221 589 01 4300:

   • Spindle (03) 221 589 01 43 03
   • Thrust piece (04) 221 589 01 43 04
   • Thrust piece (05) 221 589 01 43 05
4. Apply insertion agent to elastomer bearing (10).

   Replace elastomer bearing (10).

5. Position elastomer bearing (10) in the correct position from the front onto the rear axle carrier (5).
6. Insert insertion tool (00) from rear into bore on rear axle carrier (5).

   Do not use the visually very similar end stop 221 589 01 43 06 of the extraction and insertion tool 221 589 01 43 00!

   Otherwise, the elastomer bearing (10) will not reach the correct end position in the rear axle carrier (5).

   The bore (arrow) in the insertion tool (00) must face downwards.

7. Position thrust piece (05) and hydraulic cylinder (07) with spindle (03) and thrust piece (04) on elastomer bearing (10) and insertion device (00) as shown.
8. Press elastomer bearing (10) into rear axle carrier (5).

   If hydraulic cylinder (07) reaches its maximum stroke, release pressure on hand pump (021), and screw spindle (03) further into insertion device (00), then repeat press-in procedure.

   The shape of the insertion tool (00) determines the final position of the elastomer bearing (10) in the rear axle carrier (5).

9. Remove special tools.
