Check Condition Of Rear Axle And Control Arms - AP35.20-P-3552SG
Model 223 with code Z07 (B7 armoring on special protection version)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Release parking brake. | ||
| 2 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| Check | |||
| 3 | Assess the wheel bearings by firmly tugging, pushing and turning at the wheels. | If problems are determined, ↓ rectify the problems. |
|

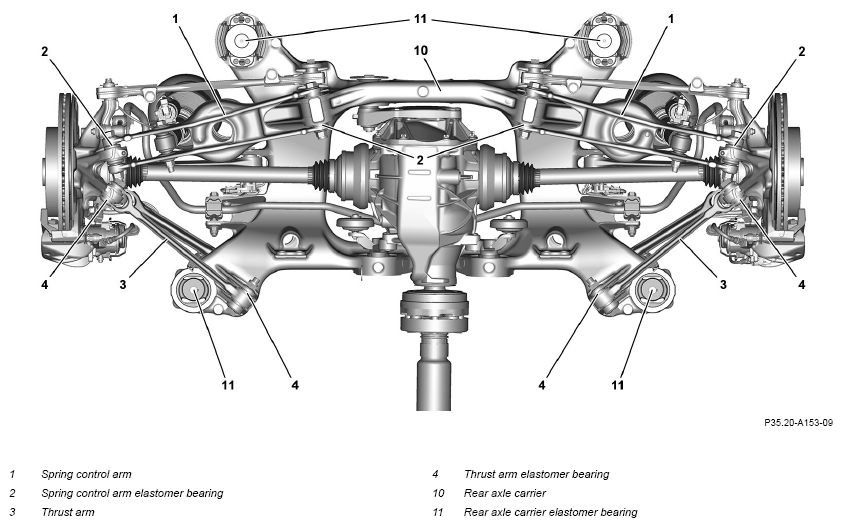

| 4 | Check rear axle carrier (10) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 5 | Check rear axle carrier elastomer bearings (11) for cracks, deformation and wear. | If problems are determined, ↓ rectify the problems. |
|
| 6 | Check shock absorber elastomer bearings (9) for cracks, deformation and wear; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 7 | Check spring links (1) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 8 | Check spring link elastomer bearings (2) for cracks, deformation and wear as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 9 | Check thrust arms (3) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 10 | Check thrust arm elastomer bearings (4) for cracks, deformation and wear; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|

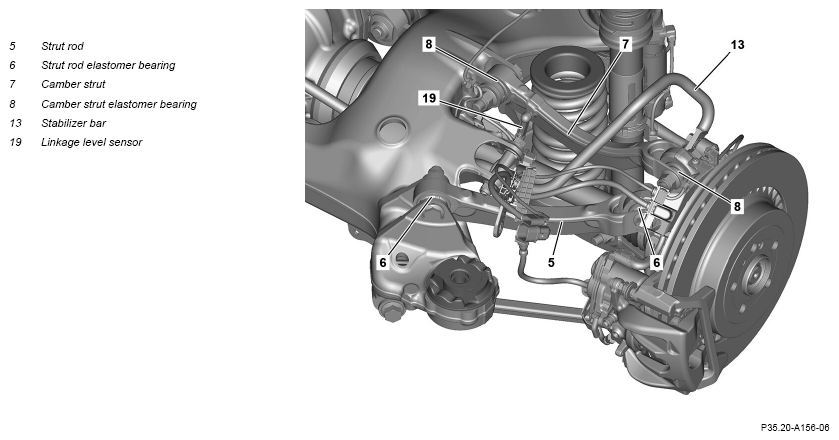

| 11 | Check strut rods (5) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 12 | Check strut rod elastomer bearings (6) for cracks, deformation and wear; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 13 | Check camber struts (7) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 14 | Check camber strut elastomer bearings (8) for cracks, deformation and wear; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|

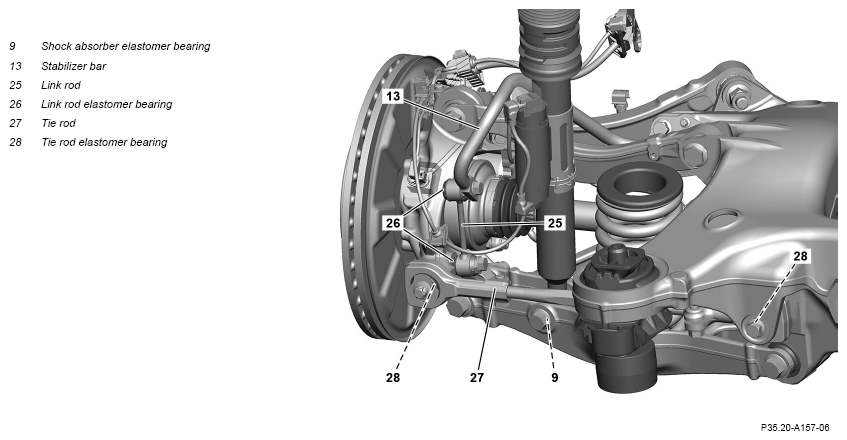

| 15 | Check tie rods (27) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 16 | Check elastomer bearings of tie rods (28) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|

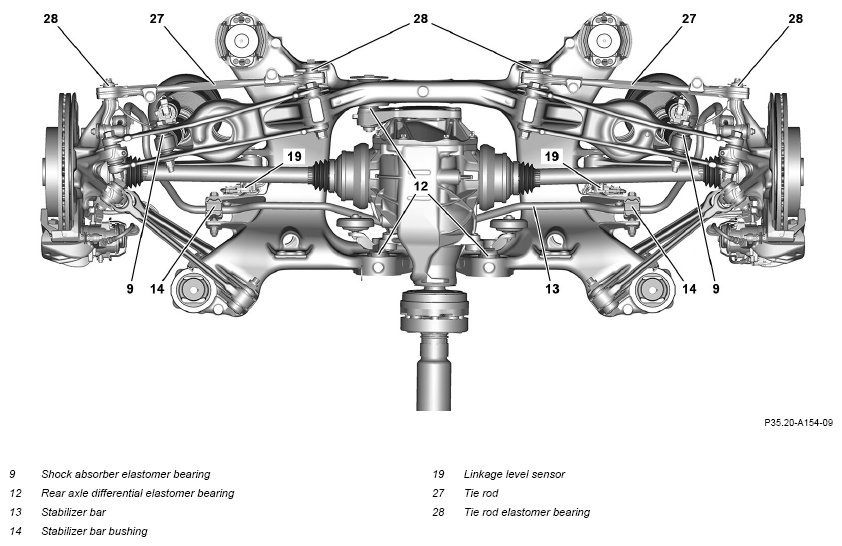

| 17 | Check stabilizer (13) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 18 | Check stabilizer bushings (14) for cracks, deformation and wear. Also check for play by firmly pulling and pushing on stabilizer (13). | If problems are determined, ↓ rectify the problems. |
|
| 19 | Check link rods (25) for deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 20 | Check elastomer bearings of link rods (26) for cracks, deformation and wear as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 21 | Check rear axle differential elastomer bearings (12) for cracks, deformation and wear. | If problems are determined, ↓ rectify the problems. |
|

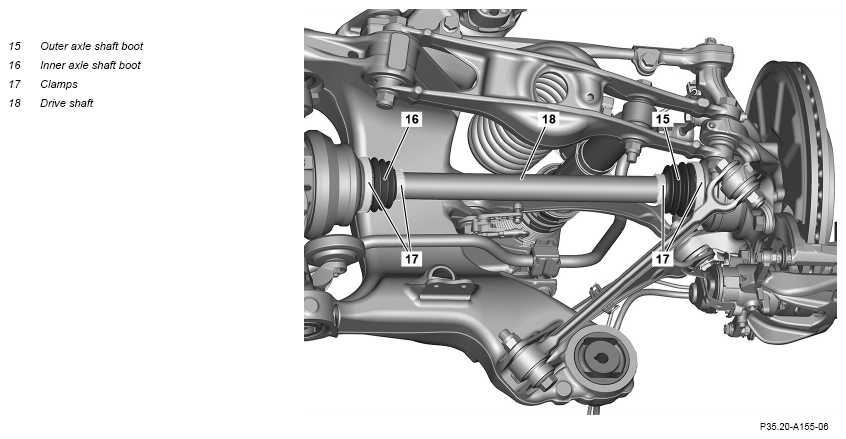

| 22 | Check outer drive shaft boots (15) for condition, leak tightness and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 23 | Check inner drive shaft boots (16) for condition, leak tightness and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 24 | Check clamps (17) for cracks, deformation, corrosion and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 25 | Check drive shafts (18) for cracks, deformation and corrosion; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 26 | Check level sensor linkage (19) for correct seating, cracks, deformation, corrosion and play. | If problems are determined, ↓ rectify the problems. |
|
| Finishing activity | |||
| 27 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A |
