Check Condition Of Rear Axle And Control Arms - AP35.20-P-3552J
Model 223 (except 223.182) except code Z07 (B7 armoring on special protection version)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 201 (Rear axle steering)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 201 (Rear axle steering)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 201 (Rear axle steering)
Shown on model 223.163 except code Z07 (B7 armoring for special protection version), except code 201 (Rear axle steering)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Preparatory activity | |||
| 1 | Release parking brake. | ||
| 2 | Lift vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||
| Check | |||
| 3 | Assess the wheel bearings by firmly tugging, pushing and turning at the wheels. | If problems are determined, ↓ rectify the problems. |
|

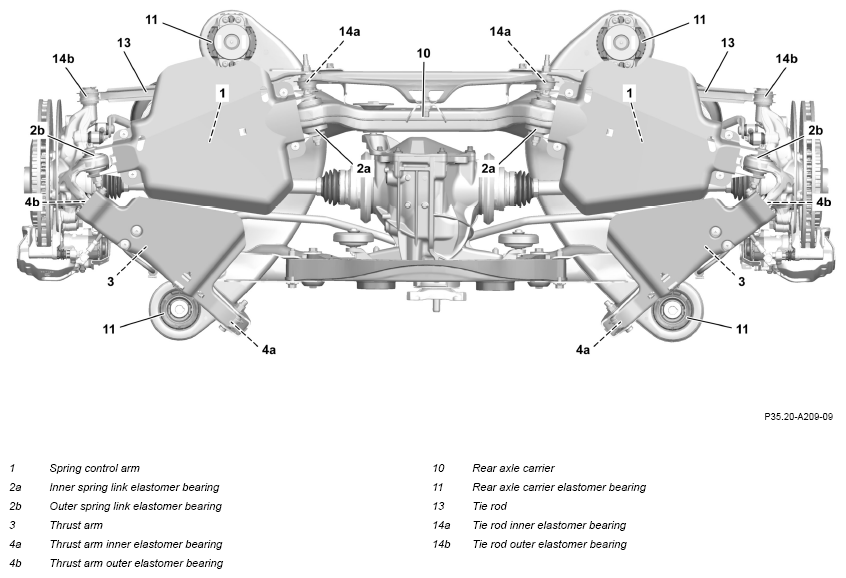

| 4 | Check rear axle carrier (10) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 5 | Check rear axle carrier elastomer bearings (11) for cracks, deformation and wear. | If problems are determined, ↓ rectify the problems. |
|
| 6 | Check spring links (1) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 7 | Check spring link inner elastomer bearings (2a) for cracks, deformation and wear, and check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 8 | Check spring link outer elastomer bearings (2b) for cracks, deformation and wear, and check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 9 | Check thrust arms (3) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 10 | Check thrust arm inner elastomer bearing (4a) for cracks, deformation and wear, and check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 11 | Check thrust arm outer elastomer bearing (4b) for cracks, deformation and wear, and check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 12 | Check tie rods (13) for cracks, deformation and corrosion. | Model 223 (except 223.182) except code 201 (Rear axle steering) except code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) If problems are determined, ↓ rectify the problems. |
|
| 13 | Check tie rod inner elastomer bearings (14a) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | Model 223 (except 223.182) except code 201 (Rear axle steering) except code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) If problems are determined, ↓ rectify the problems. |
|
| 14 | Check tie rod outer elastomer bearings (14b) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | Model 223 (except 223.182) except code 201 (Rear axle steering) except code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) If problems are determined, ↓ rectify the problems. |
|

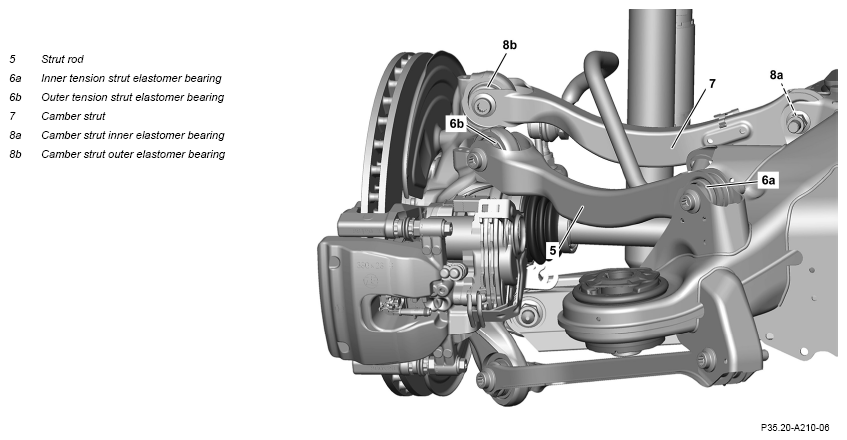

| 15 | Check tension struts (5) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 16 | Check tension strut inner elastomer bearings (6a) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 17 | Check tension strut outer elastomer bearings (6b) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 18 | Check camber struts (7) for cracks, deformation and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 19 | Check camber strut inner elastomer bearings (8a) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 20 | Check camber strut outer elastomer bearing (8b) for cracks, deformation and wear, as well as for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|

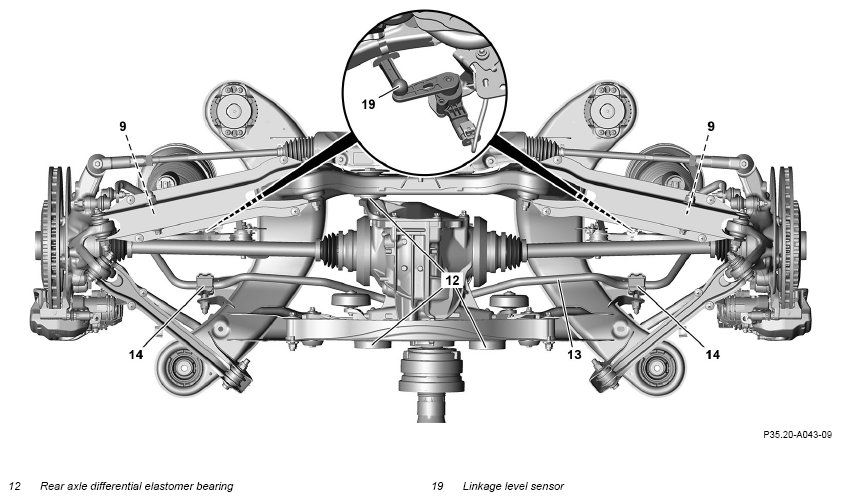

| 21 | Check rear axle differential elastomer bearings (12) for cracks, deformation and wear. | If problems are determined, ↓ rectify the problems. |
|

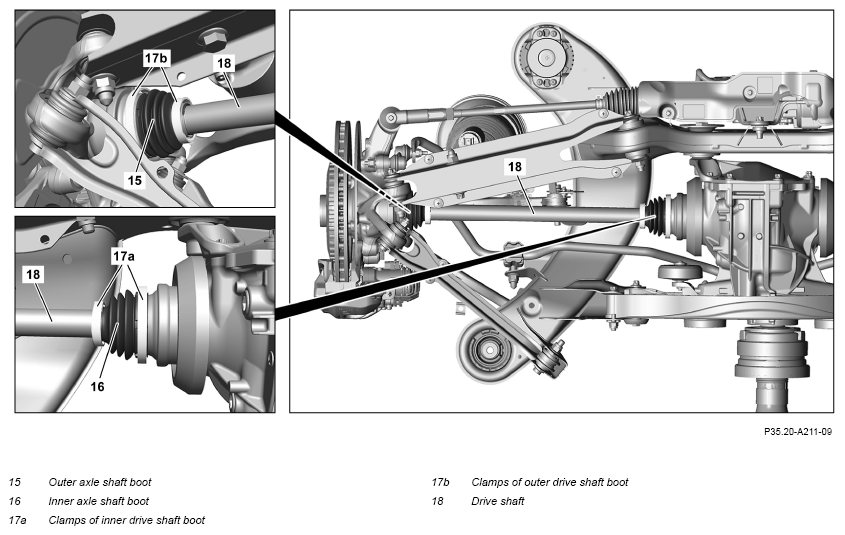

| 22 | Check outer drive shaft boots (15) for fluid loss, crack formation, damage and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 23 | Check clamps of outer drive shaft boots (17b) for presence, cracks, deformation, corrosion and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 24 | Check inner drive shaft boots (16) for fluid loss, crack formation, damage and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 25 | Check clamps of inner drive shaft boots (17a) for presence, cracks, deformation, corrosion and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 26 | Check drive shafts (18) for cracks, deformation and corrosion; also check for play by firmly pulling and pushing. | If problems are determined, ↓ rectify the problems. |
|
| 27 | Check linkage level sensor (19) for cracks, deformation, corrosion, ease of movement and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| Finishing activity | |||
| 28 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A |
