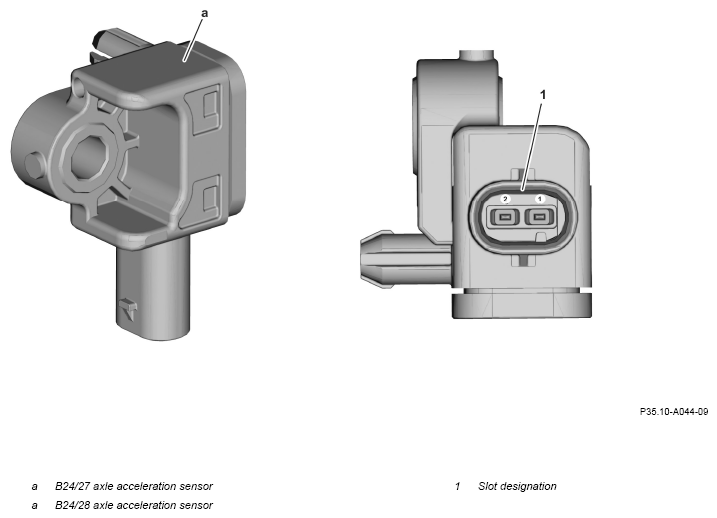

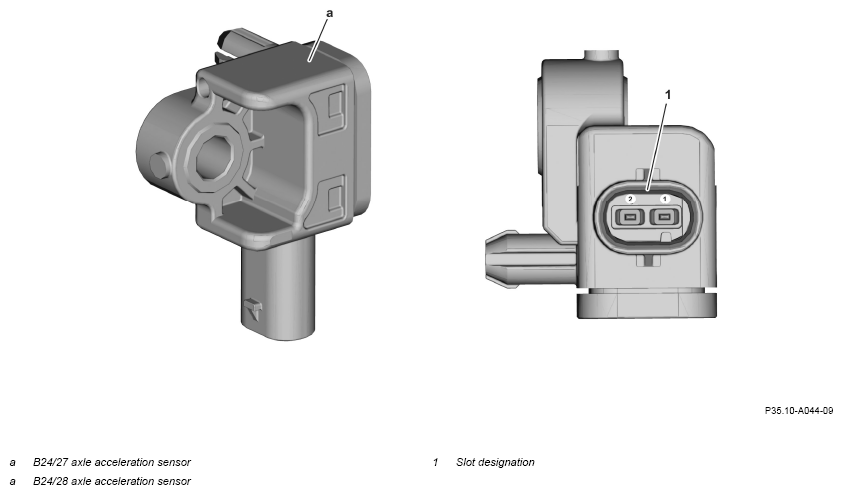

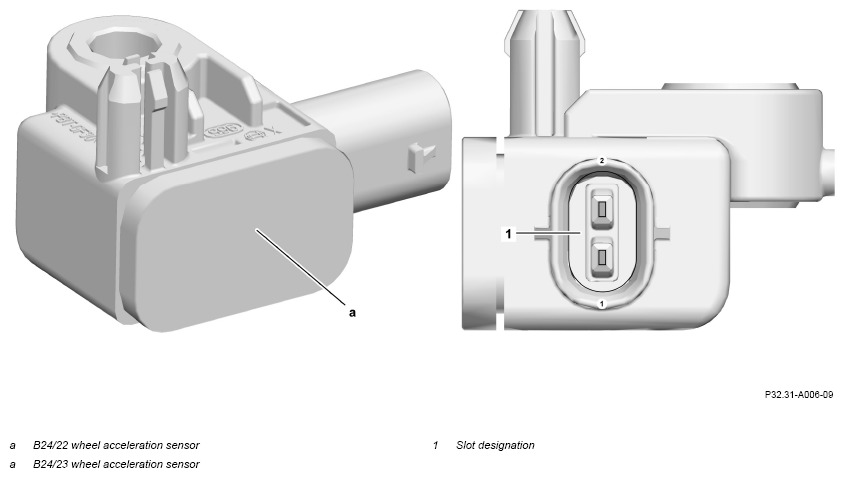

Rear Axle Acceleration Sensor, Component Description - GF35.10-P-2001A

Model 223

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with code 96B

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with code 96B, engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with code 96B

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with code 96B, engine M177

The numbers on the pins indicate the pin numbering of the slots.

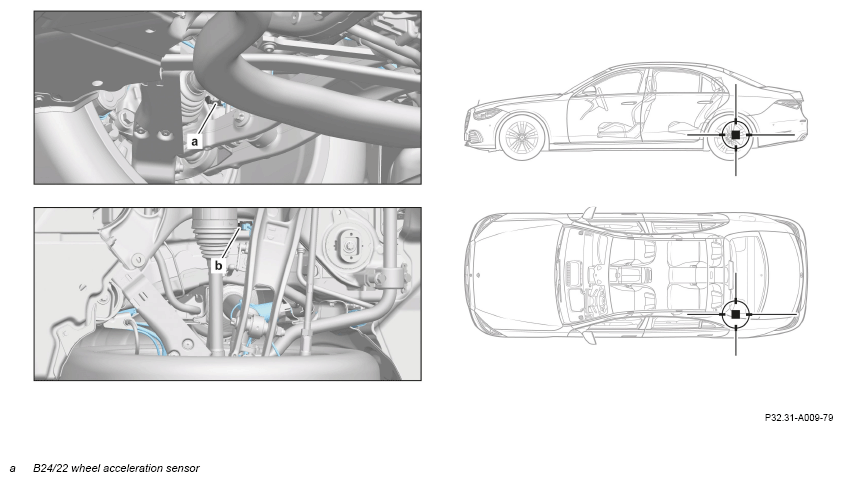

Fig 1: Left Rear Wheel Acceleration Sensor Components Location - Model 223 With Code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B, engine M177

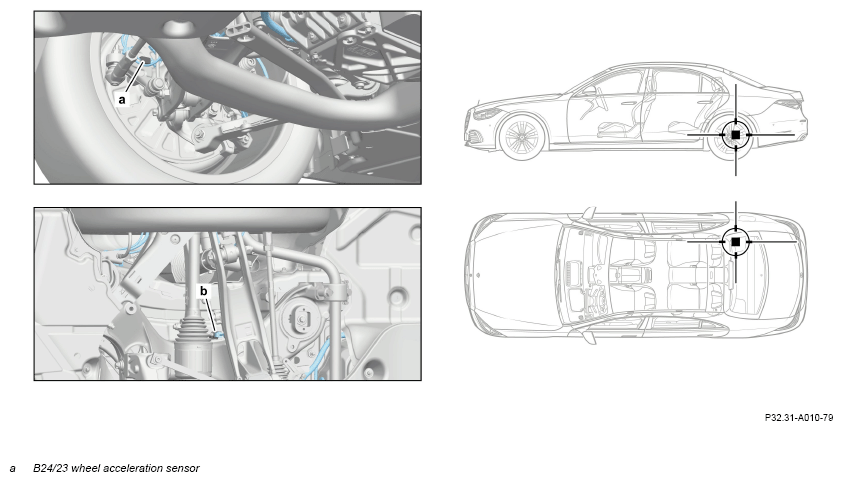

Fig 2: Right Rear Wheel Acceleration Sensor Components Location - Model 223 With Code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B, engine M177

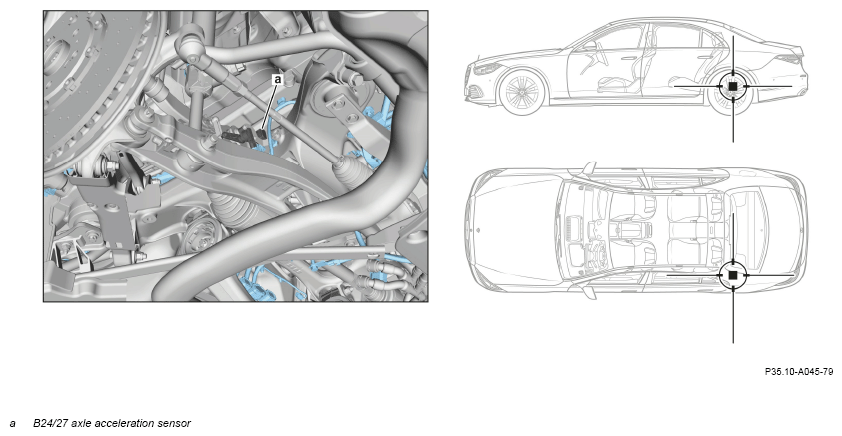

Fig 3: Left Rear Axle Acceleration Sensor Components Location - Model 223 With Code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B, engine M177

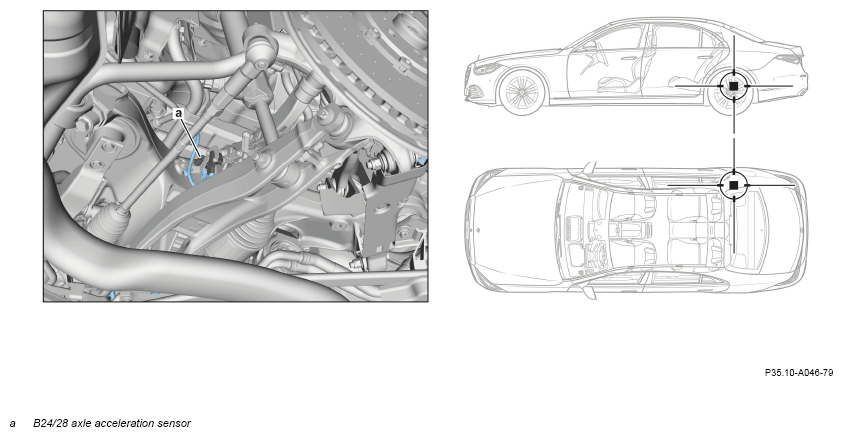

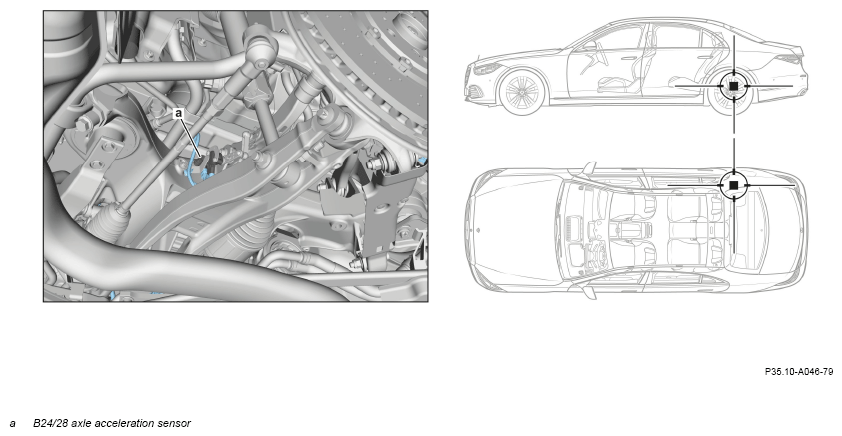

Fig 4: Right Rear Axle Acceleration Sensor Components Location - Model 223 With Code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 96B, engine M177
