Remove/Install Lateral Acceleration Sensor - AR32.22-P-0014S

Model 223

with code 490 (Electrohydraulic suspension)

Shown on model 223.### 1#

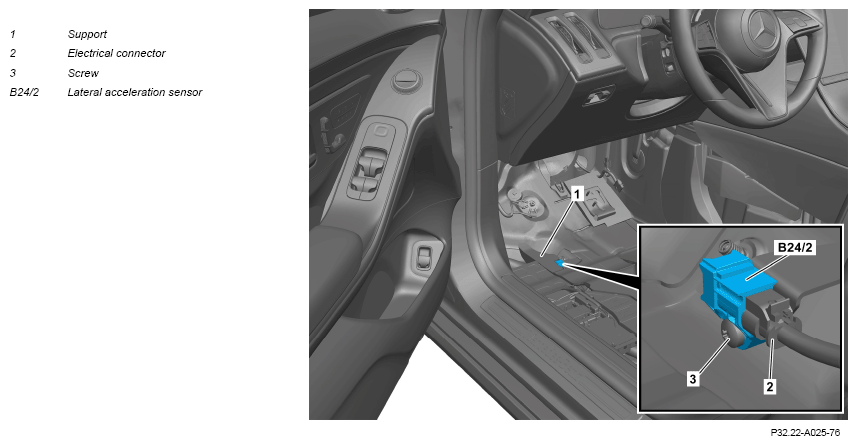

Fig 1: Lateral Acceleration Sensor Components Location - Model 223 With Code 490 (Shown On Model 223.### 1#)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove front floor covering on driver side.	Model 223.### 1# with code 490 (Electrohydraulic suspension)	AR68.80-P-0007S
1.2	Remove floor covering at front on front passenger side.	Model 223.### 2# with code 490 (Electrohydraulic suspension)	AR68.80-P-0008S
2	Place support (1) to one side.
3	Release and disconnect electrical connector (2).
4	Remove screw (3) and remove lateral acceleration sensor (B24/2).	Screw, lateral acceleration sensor to body	*BA32.50-P-1011-04B
5	Install in the reverse order.
