Install/Remove Emergency Buffer - AR32.00-P-1000S

Model 223

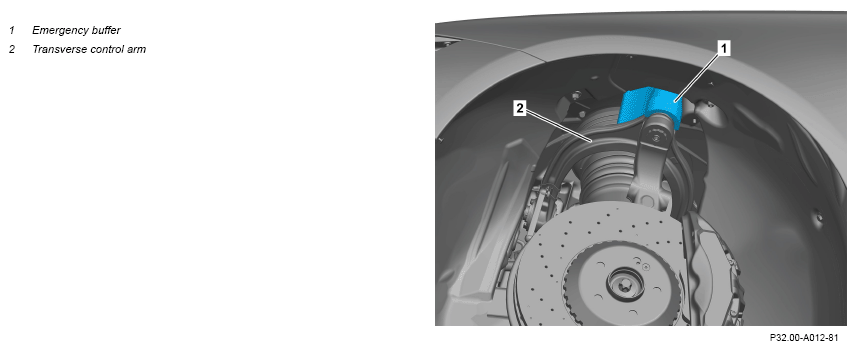

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off during lifting	Only lift vehicle at the lift support points specified by the vehicle manufacturer.	AS00.00-Z-0032-01A
	Install/remove
1	Raise corresponding side of front axle.
2	Place emergency buffer (1) on upper transverse control arm (2).	Emergency buffers (1) should be used for maneuvering only. Set of emergency buffers	Fig 1
3	Slowly lower vehicle.	Make sure that the emergency buffer (1) rests against the top of the wheel arch.
4	Removal in the reverse order.

Fig 1: Identifying Set Of Emergency Buffers (223 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
