Damping Valve Unit, Component Description - GF32.32-P-1011A

Model 223

Courtesy of MERCEDES-BENZ USA

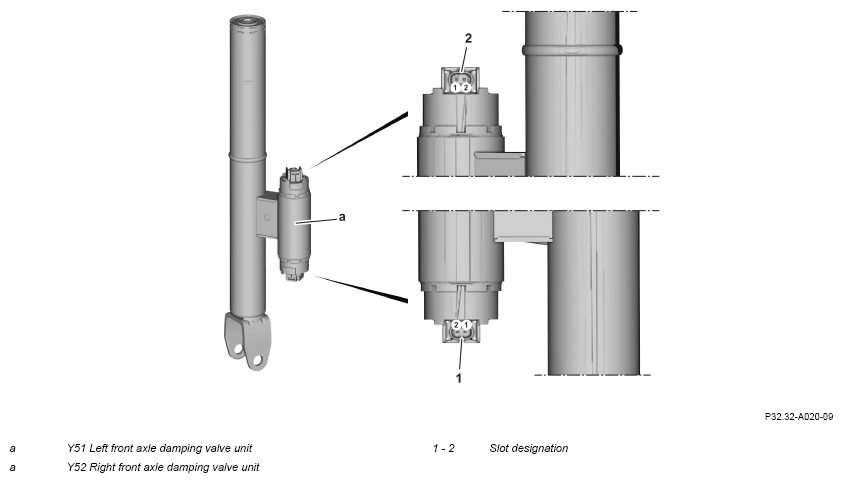

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

The numbers on the pins indicate the pin numbering of the slots.

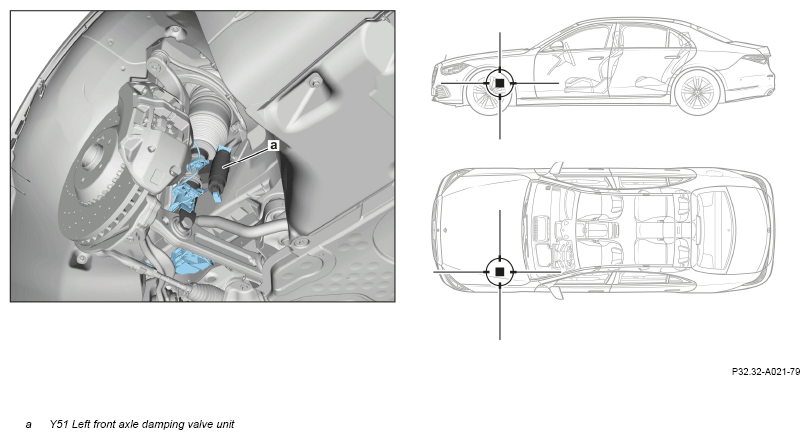

Fig 1: Left Front Damping Valve Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left

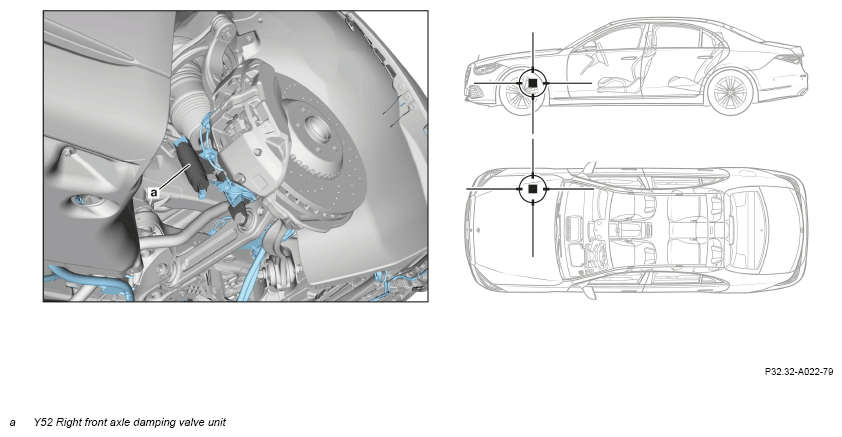

Fig 2: Right Front Damping Valve Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right

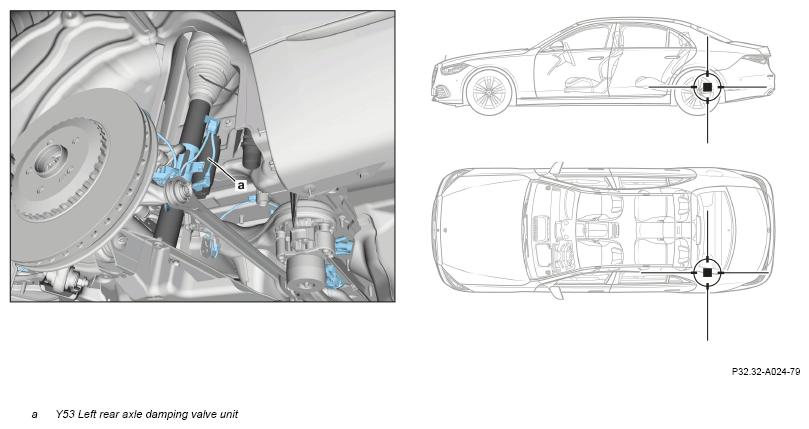

Fig 3: Left Rear Damping Valve Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left

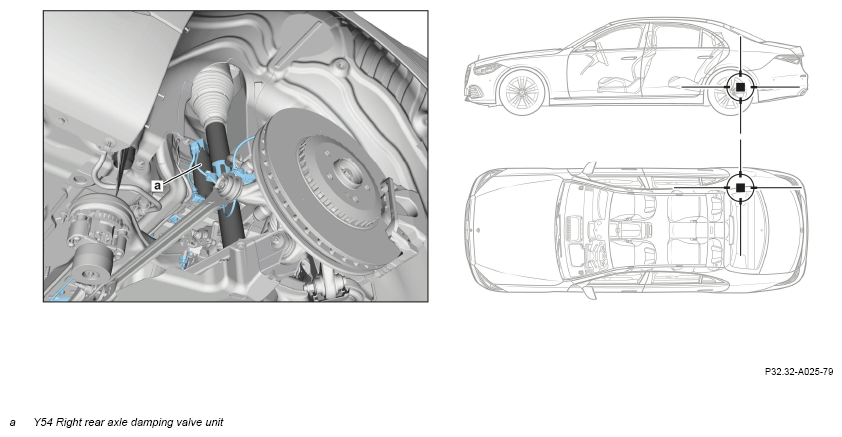

Fig 4: Right Rear Damping Valve Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right
