Remove/Install Front Axle Upper Control Arm - AR33.20-P-0500S

Model 223

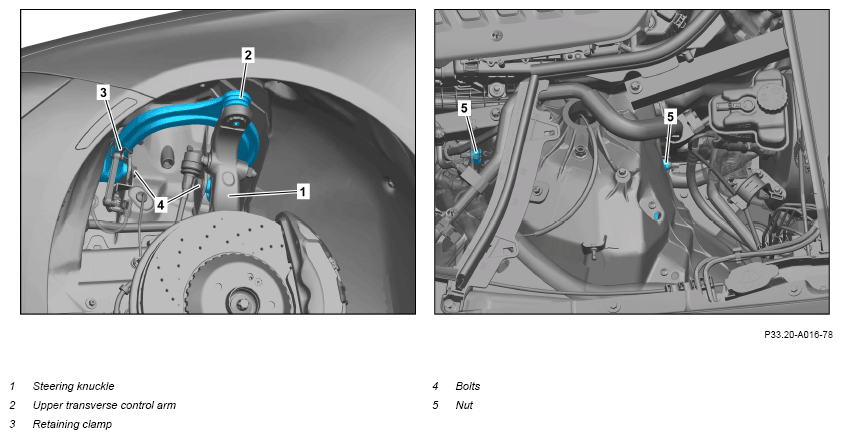

Fig 1: Front Axle Upper Control Arm Components Location - Model 223 (Shown On Model 223.### 1# On Driver's Side)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# on driver's side

Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove suspension strut concerned.	Model 223 with code 490 (Electrohydraulic suspension)	AR32.25-P-1017SA
		Model 223 except code 490 (Electrohydraulic suspension)	AR32.25-P-1017S
2	Remove fuse and relay module with housing in engine compartment and place to one side with connected lines.	When removing the upper transverse control arm (2) on the driver's side.	AR54.15-P-0005S
3	Remove air duct segment.	When removing the upper transverse control arm (2) on the front passenger side.
			AP83.00-P-8381I
4.1	Remove battery of 12 V on-board electrical system.	Model 223 with engine 177 with code B01 (48V technology) with code ME10 (Hybrid vehicle (plug-in, PHEV)) When removing the upper transverse control arm (2) on the front passenger side.
			AR54.10-P-1134SA
4.2	Remove battery of 48 V on-board electrical system.	Model 223 with engine 176 with code B01 (48V technology) Model 223 with engine 256 with code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) When removing the upper transverse control arm (2) on the front passenger side.	AR54.10-P-0022S
5	Secure steering knuckle (1) to prevent it from folding down.
6	Detach upper transverse control arm (2) from steering knuckle (1).	Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01T
7	Remove retaining clamp (3) of front level sensor from upper transverse control arm (2).	Pay attention to installation position.
8	Counterhold bolts (4) and remove nuts (5).	Nut, transverse control arm to body	*BA33.20-P-1005-01T
9	Pull out bolts (4).
10	Remove upper transverse control arm (2).
	Check
11	Check elastomer bearings at upper transverse control arm (2) for wear and damage.	If there is a problem, ↓ Replace upper transverse control arm (2).
12	Check upper ball joint at upper transverse control arm (2) for wear and damage.	If there is a problem, ↓ Replace upper transverse control arm (2).
13	Check upper transverse control arm (2) for damage.	If there is a problem, ↓ Replace upper transverse control arm (2).
14	Install in the reverse order.

WHEEL CONTROL, HUB

Number	Designation			Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA33.20-P-1005-01T	Nut, transverse control arm to body	Stage 1	Nm	70	90
		Stage 2	∠°	90	90

WHEEL CONTROL, HUB

Number	Designation			Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA33.20-P-1006-01T	Nut, steering knuckle to transverse control arm	Stage 1	Nm	50	50
		Stage 2	∠°	45	45
