Rear Axle Steering Control Unit, Component Description - GF46.80-P-1001A

Model 223

Courtesy of MERCEDES-BENZ USA

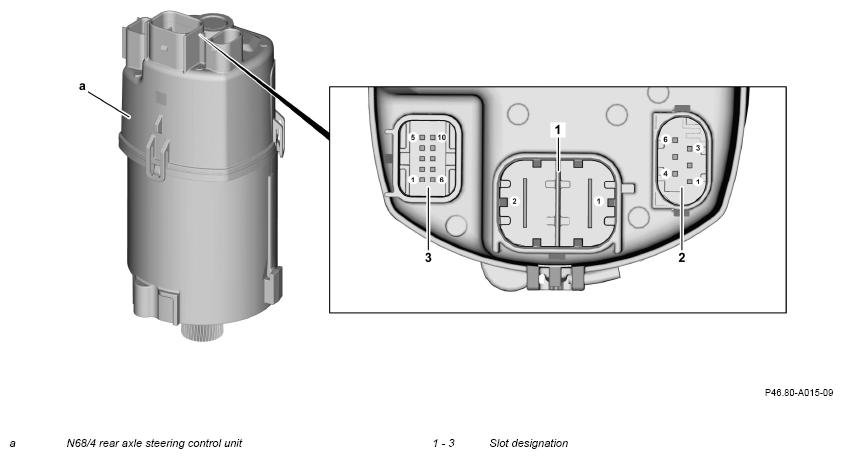

Diagram valid for model 223 with engine M177, code 201

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with engine M177, code 216

The numbers on the pins indicate the pin numbering of the slots.

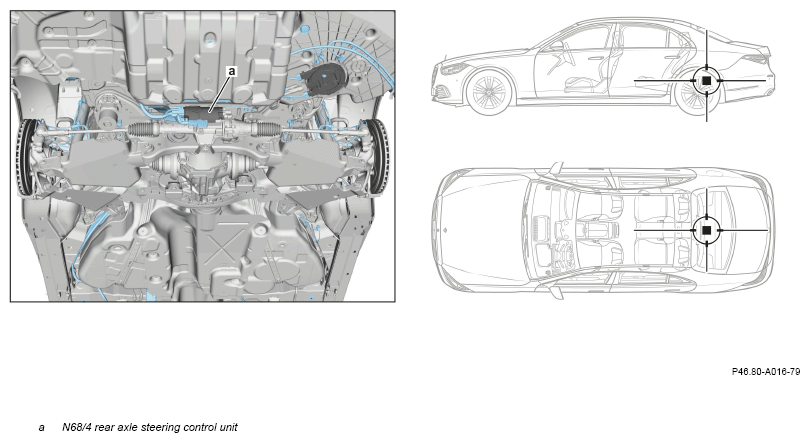

Fig 1: Rear Axle Steering Control Unit Components Location - Model 223 (Shown With Engine M177, Code 201)

Courtesy of MERCEDES-BENZ USA

Location for model 223 with engine M177, code 201

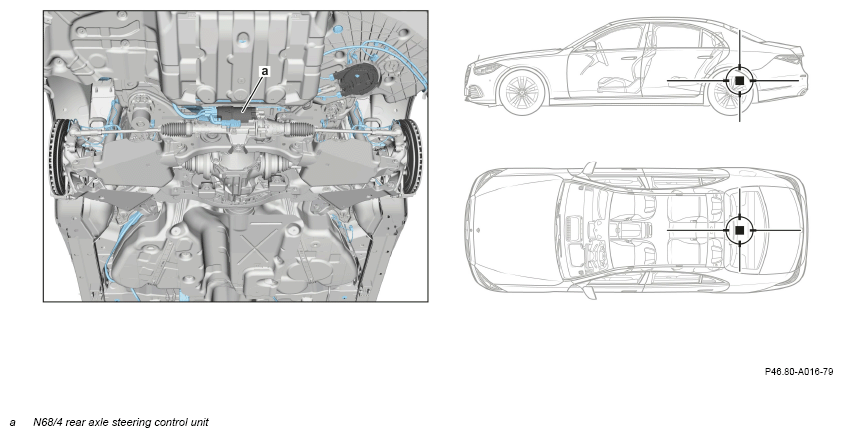

Courtesy of MERCEDES-BENZ USA

Location for model 223 with engine M177, code 216
