Electrical Power Steering Control Unit (ES), Component Description - GF46.35-P-7010A

Model 223

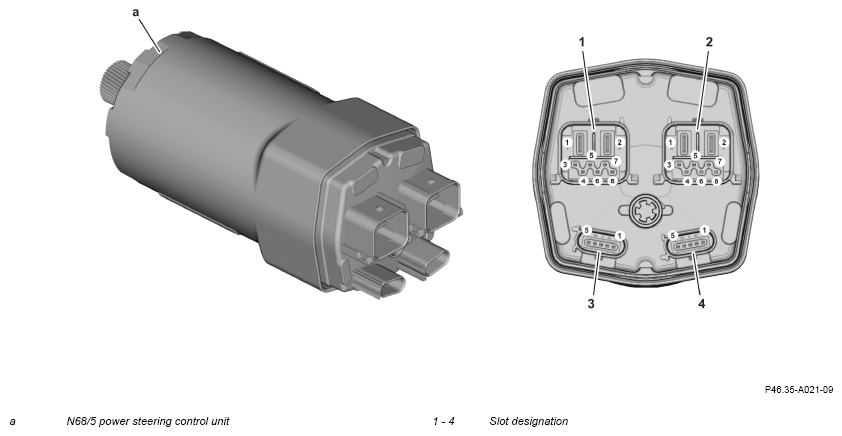

G16231616Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

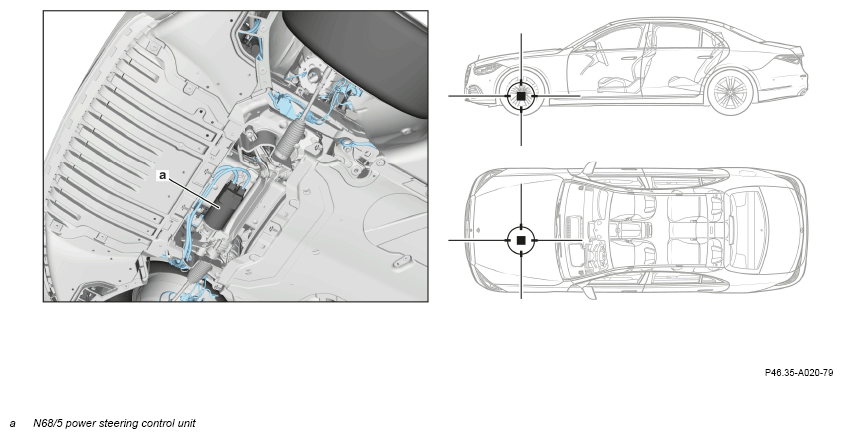

Fig 1: Electrical Power Steering Control Unit Components Location - Model 223
G16231617Courtesy of MERCEDES-BENZ USA

Location
