Remove/Install Front Trim On Seat Frame - AR91.10-P-1203S

Model 223

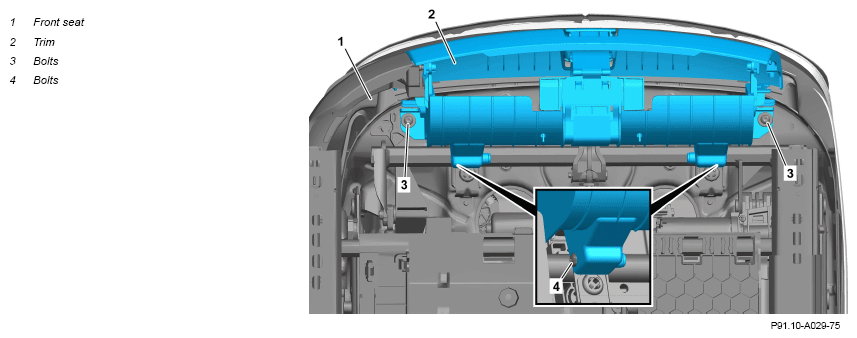

Shown with code 682 (Fire extinguisher)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Release front seat (1) and tilt towards rear.		AR91.10-P-1000S
2	Remove fire extinguisher.	Model 223 with code 682 (Fire extinguisher)
		Ensure that fire extinguisher is seated correctly.
3	Remove screw/bolts (3).	Model 223 with code 682 (Fire extinguisher)
4	Remove screws/bolts (4).	Model 223 with code 682 (Fire extinguisher)
5	Unclip and remove trim (2).	Make sure that the trim (2) is seated correctly.
6	Install in the reverse order.
