Supplemental Restraint System Control Unit, Component Description - GF91.60-P-4080A

Model 223

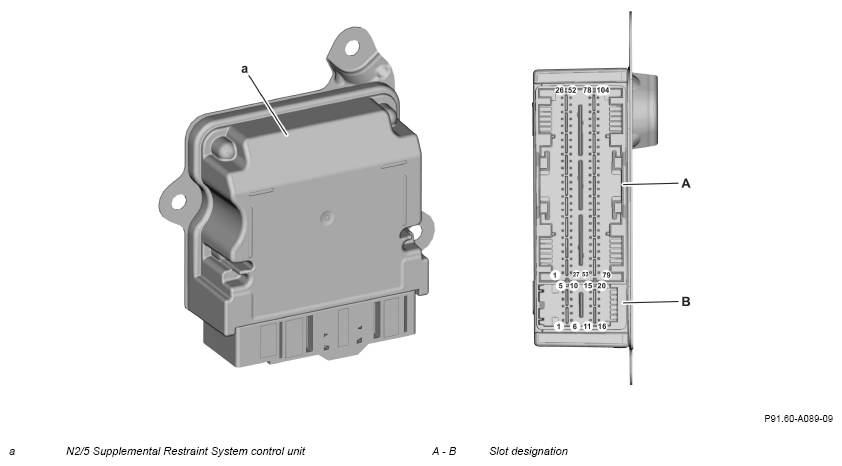

G16232942Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

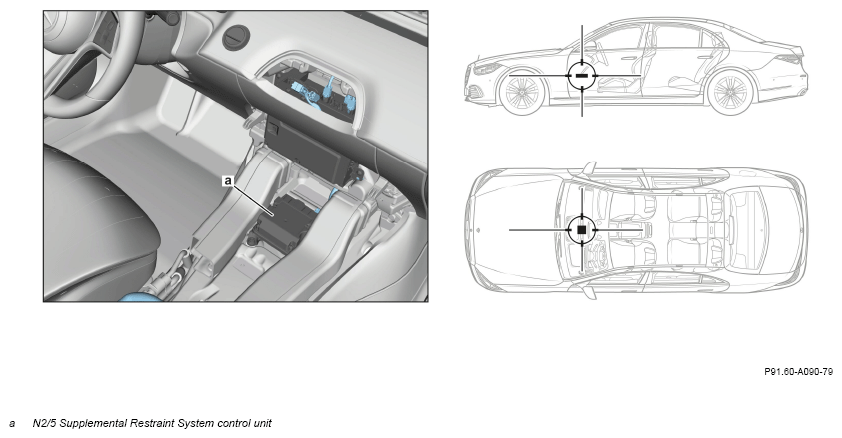

Fig 1: Supplemental Restraint System Control Unit Components Location - Model 223
G16232943Courtesy of MERCEDES-BENZ USA

Location
